XY-1A 150 Meters Crawler Mounted Water Well Drilling Rig For Exploration Investigation

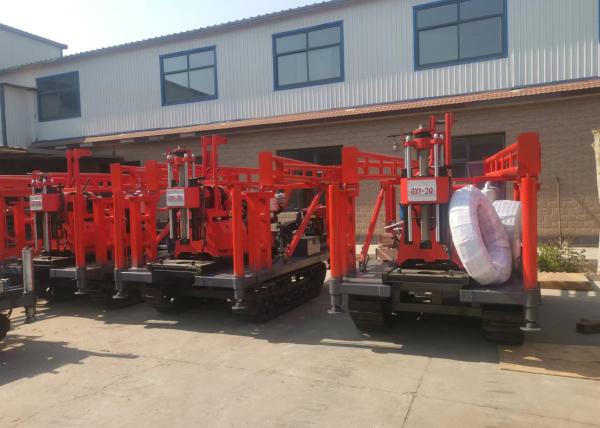

XY-1A 150 Meters Crawler Mounted Water Well Drilling Rig
XY-1A Water Well Drilling Rig Information:
150 meters depth and 150mm hole diameter ,it is ideal for geological survey and exploration, road and high-rise building foundation exploration, water well drilling and other applications. It comes in multiple types including trailer mounted, crawler mounted and truck mounted types. With extreme flexibility
XY-1A Water Well Drilling Rig Product Parameter:
| Drill Rig Details | Swivel Head |
| Drilling depth | Max.150m | Spindle speed | 1010,790,470,295,140(r/min) |
| Hole diameter | Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump |
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | | |
| Rated speed | 1500r/min | | |
| Hoist | Power(diesel) |
| Max. lifting capacity | 15KN | Model(diesel engine | ZS1105 |
| Hoisting drum revolution | 121,76,36(r/min) | Rated power | 12.1KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG |
| SIZE | 1620*970*1560mm |
XY-1A Water Well Drilling Rig Features
1.When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum of depth my not exceed 110% of that drilled in each hole.The maximum allowable hole diameter is 150mm.
2.With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
3.The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replaced without shutdown, high efficiency, safe and reliable.
4.A hole bottom pressure gauge is mounted indicating the pressure in order to control the staus inside the hole
5.Compact structure, small volume, lightweight, easy transportation and suitable for the operations in plains or mountain areas.
Which trees indicate underground water?
Trees like the ash, the alder, the willow and the poplar are also useful in this regard. These trees generally grow in freshwater aquifers where the water table depth is not more than ten meters. These species are found in riparian ecosystems and areas characterized by shallow groundwater, such as bottom lands.
What are the characteristics of trailer mounted well drilling rig?
1. The trailer well drilling rig can be towed and moved by tractors and other tractors, so it is convenient and fast to move and has good mobility;
2. The main components of the drilling rig, such as winch, rotary table, gearbox, tower and chassis, are independently produced by our factory, with stable and reliable performance;
3. When drilling, the water well drilling rig uses an independent diesel engine as the power to make the mechanical winch and rotary table work at the same time through mechanical transmission;
4. It has the advantages of simple operation, strong usability, convenient maintenance, less investment and quick effect. It is the best product for users.
5. It is equipped with four hydraulic jacks, which is safe and reliable and improves the universality.
The water well drilling rig is mainly used for agricultural irrigation, ventilation holes of underground tunnels, drilling of engineering buildings, and exploration and general survey of hydro-geological conditions of strata
