Large Torque 89mm Pipe Yuchai Engine ST 400 Meters Borehole Drilling Machine
ST 400 Meters Borehole Drilling Machine Information

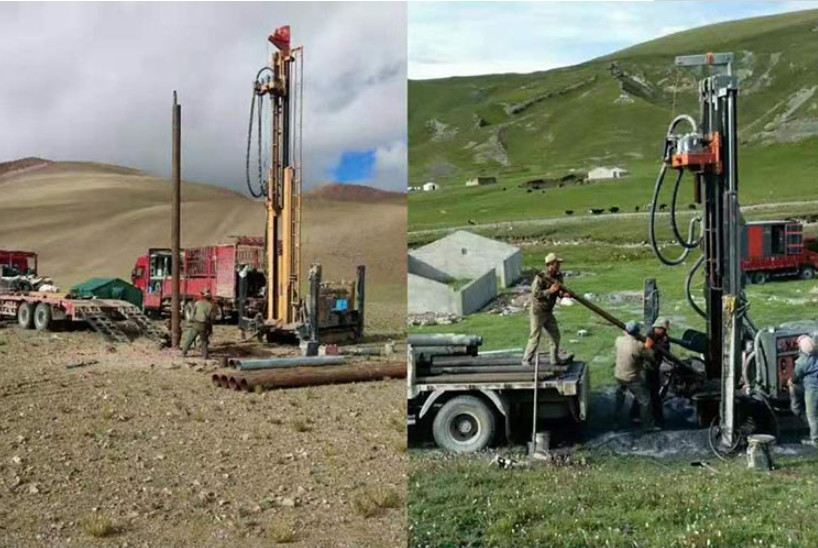

It is suitable for drilling water wells,agricultural irrigation wells, 400 meters drilling depth ,300mm hole diameter,our machines can be applied to various countries in the world, suitable for various scenarios, various geological scenarios including deserts, swamps, grasslands, mountains, orchards, etc.
ST 400 Meters Borehole Drilling Machine Technical Data
| Product Name | Shitan 400 |
Max drilling depth | 400 Meters |
Drilling diameter | 105-325 mm |
Air pressure | 1.2-3.5mpa |
Rod length | 3 meter |
Rod diameter | 89-102-114mm |
Main shaft pressure | 5T |
Lifting force | 25T |
| Power head stroke | 6.6M |
Max rotary torque | 12000Nm |
Max rotary speed | 100r/ rmin |
Secondary winch liftng force | 3T |
Jacks stroke | 1.5m |
Moving speed | 2.5km/h |
Uphill angle | 21°Slope |
Weight of the rig | 8.8T |
| The engine | 92KW / 6 cylinder |
Overall dimensions | 3900*1600*2350mm |
Working condition | Loose layer and bedrock |
Drilling method | Hydraulic rotary, down-the-hole impactor
|
ST 400 Meters Borehole Drilling Machine Features
1. It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.
2. It can be achievedwithout stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism orhydraulic chuck.
3. It hashole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure,concentrated handle, small footprint, light weight, strong decomposition, easy tomove. It can be operated in plains and mountainareas.
ST 400 Meters Borehole Drilling Machine FAQ
Q1: How long can your air compressor be used?
A: Normally more than 10 years.
Q2: What are the terms of payment?
A: TT, Western Union transfer.
Q3, Can you provide us with the documents for customs clearance?
A: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it
Q4: How is your customer service?
A: 24-hour online service. The 48 hour problem was solved (except in special cases).
Q5: How about your after-sales service?
A: 1. Provide customers with online installation and commissioning instructions.
Well trained engineers can serve overseas. (non epidemic impact)
Prevention of drilling hole collapse
The preventive measures for hole collapse should first meet two conditions: mud liquid column pressure = technological pore pressure; Minimize water infiltration into the rock and soil or water seepage around the hole wall.
Preventive measures for hole collapse caused by geological factors include:
(1) Increase the mud density and increase the mud liquid column pressure to balance the formation pressure;
(2) Use a larger ratio of mud to plastic to protect the hole.
Preventive measures for hole collapse caused by physical factors include:
(1) Start the pump too fast and keep the drill pipe working under constant tension as far as possible to avoid the sudden increase of liquid column pressure and the violent impact of drilling tools on the hole wall;
(2) According to the distribution of underground obstacles, the drilling track design and reaming procedure shall be well done to avoid the rotary extrusion of the drilling tool on the hole wall caused by the excessive curvature of the guide hole;
(3) Reasonably control the mud density and rheological properties, make the mud have a certain liquid column pressure, and maintain the low return velocity of the mud,
