XY-1A 150 Meters Small Portable Water Well Borehole Drilling Machine
XY-1A Borehole Drilling Machine Introduction
Xy-1a drilling rig is a hydraulic feed portable drilling rig, 150 meters drilling depth ,150mm hole diameter , It is a kind of hydraulic feeding, high speed, high speed torque belt and portability with pump.which is suitable for engineering geological exploration of industrial and civil buildings, railways, hydropower, transportation, bridges, dam foundations and other buildings.
XY-1A Borehole Drilling Machine Tech Data
| Drill | Swivel Head |
| Drilling depth | Max.150m | Spindle speed | 1010,790,470,295,140(r/min) |
| Hole diameter | Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump |
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | | |
| Rated speed | 1500r/min | | |
| Hoist | Power(diesel) |
| Max. lifting capacity | 15KN | Model(diesel engine | ZS1105 |
| Hoisting drum revolution | 121,76,36(r/min) | Rated power | 12.1KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG |
| SIZE | 1620*970*1560mm |
XY-1A Borehole Drilling Machine Advantages
1. It has a hydraulic automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.
2. It adopts the ball card clamping mechanism instead of the chuck, and can implement the non-stop bar, easy to operate, safe and reliable.
3.The hoist is equipped with a frame to form a double-sided support star structure that can withstand strong impact.
4.Four sets of bearing positioning of the vertical axle box ensure that the gyrator has sufficient rigidity to deal with complex geological conditions such as gravel layer and pebble layer.
5.This machine adopts a taper clutch, which has the characteristics of large transmission torque, convenient operation and maintenance-free.
XY-1A Borehole Drilling Machine Application
XY-1A drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees,earth temperature central air-conditioner,etc.XY-1 Series are spindle core geotechnical drilling rigs most perfectly suitable for borehole drilling in geo-construction and geo-technical exploration drilling in projects like civil building, construction of railway, hydropower, highway, bridge and dam etc. Typically, they are mainly used for:
Product Tags:
|
|

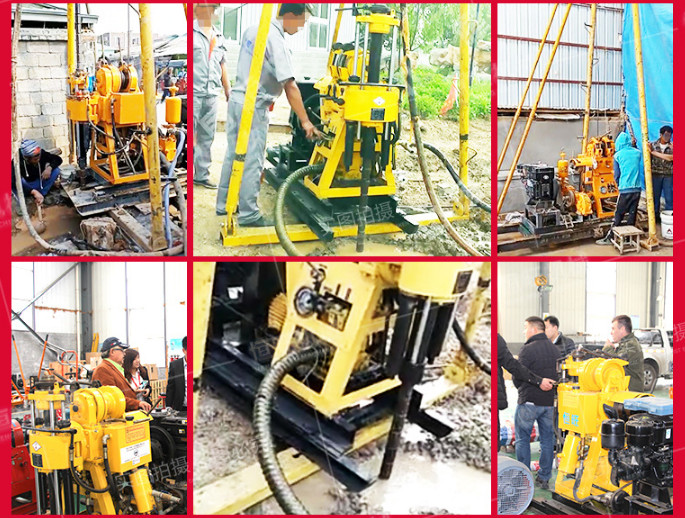

XY-1A 150 Meters Small Portable Water Well Borehole Drilling Machine Images
|
