Xy-1a 150 Meters Water Borehole Drilling Machine With 150 mm Hole Diameter
XY-1A Borehole Drilling Rig Introduction
XY-1A is a portable drilling rig with oil pressure feed. Rated drilling depth 150m; The drilling depth depends on the formation conditionsIt is suitable for industrial and civilian drilling, geothermal drilling and other well holes.
XY-1A Borehole Drilling Rig Parameter:
| Drilling depth | 150m |
| Drill rod caliber | 50 42mm |
| End hole caliber | 75 46mm |
| Max. open hloe caliber | 220mm |
| Drilling angle | 90°~75° |
| Drill weight (No include power) | 610kg |
| Unity machine dimensions | 2.1*0.9*1.3m |
| Spindle |
| spindle speed | 130, 300, 480, 730, 830, 1045r/min |
| Spindle stroke | 450mm |
| Hoist |
| Max.single line hoisting capacity | 1600kg |
| Single line lifting speed | 1.06, 0.67, 0.32m/s |
| Wirerope caliber | 13mm |
| Wirerope cubic measure | 35m |
| Hug floodgate caliber | 254mm |
| Hug folldgate belt width | 50mm |
| Distance between drill and hole | 230mm |
| Mud pump |
| Type | Horizontal single urn twin-action |
| Displacement | 170L/min |
| Maximum pressure | 1.5Mpa |
| Work pressure | 0.7Mpa |
| Power |
| Diesle engine | S1105 18HP |
| Electric motor | Y160M—4 15KW
|
XY-1A Borehole Drilling Rig Advantages:
1. It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.
2. Easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
3. It has hole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountain areas.
Seeking Water:
According to the geographical location, it is well known that water flows to the place. As the saying goes, it is most beneficial to find water in the pinch land surrounded by mountains on three sides. Because of the low-lying terrain, the groundwater will flow to the pinch mouth. There is a high probability of drilling wells near the pinch mouth to get water. The two ditches intersect, and the spring water is choppy, that is, there may be water accumulation under the mountain mouth at the intersection of the two ditches.
How deep can you drill your own well?
Drilling a Water Well for household use will usually range from about 100 feet to 500 feet deep, but... When drilling a new well for your home or business, the depth of the well depends on the geology and underground water levels of the area
Product Tags:
|
|

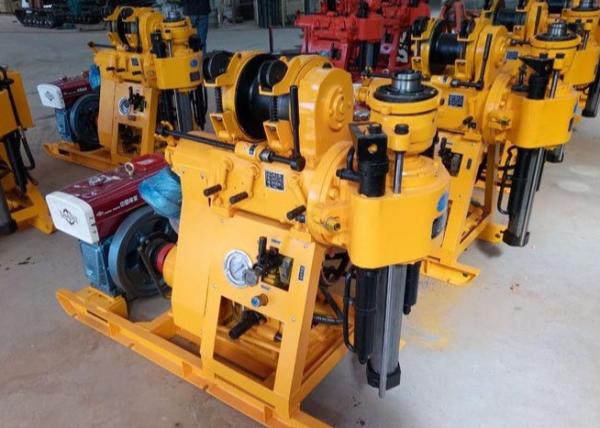

Xy-1a 150 Meters Water Equipment For Borehole Drilling With 150 Mm Hole Diameter Images
|
