150 Meters Detph Portable Hydraulic Borewell Machine
XY-1A Hydraulic Borewell Machine Information
XY-1A Hydraulic Water Well Drilling Rig Core Geological Exploration Drilling Rig Congratulations on finding the source factory, we have our own processing workshop, support video factory audit, and can show you the factory environment and processing process, please feel free to contact me, we will give you the best price!
XY-1A Hydraulic Borewell Machine Parameter:
| Drill Rig Details | Swivel Head |
| Drilling depth | Max.150m | Spindle speed | 1010,790,470,295,140(r/min) |
| Hole diameter | Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump |
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | | |
| Rated speed | 1500r/min | | |
| Hoist | Power(diesel) |
| Max. lifting capacity | 15KN | Model(diesel engine | ZS1105 |
| Hoisting drum revolution | 121,76,36(r/min) | Rated power | 12.1KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG |
| SIZE | 1620*970*1560mm |
XY-1A Hydraulic Borewell Machine Advantages
1.Air compressor or Mud Pump are both available to use for different stratums.
2. DTH Hammer tools are for hard layers.
3. Crawler mounted base, with four hydraulic high standing legs, convenient to load on truck, or working at rugged places.
4. Full hydraulic and top drive technology, labor saving, efficient working.
5. Inserted diesel engine, compact and can also use to heat water.
6. With complete hydraulic oil cooling system, ensuring stable working and good condition.
XY-1A Hydraulic Borewell Machine Application
XY-150 drilling rig is a new-type, portable engineering drilling machine for multiple applications.
Geological prospecting;
Foundation holes of small buildings;
Drilling of water wells;
Core sample,soil investigation etc
Our sales specialists and technical teams understand specific industry standard requirements. They can help you anytime, anywhere!
Frequently Asked Questions
Q: How can we choose a suitable core drill rig?
A: We normally recommend a suitable model according to drilling hole dia., drilling depth, layer condition etc.
Q: Are you a factory or a trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: 30% TT deposit and the balanace before delivery.
Q:.What is your MOQ? How long is the delivery time?
A: MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
Product Tags:
|
|

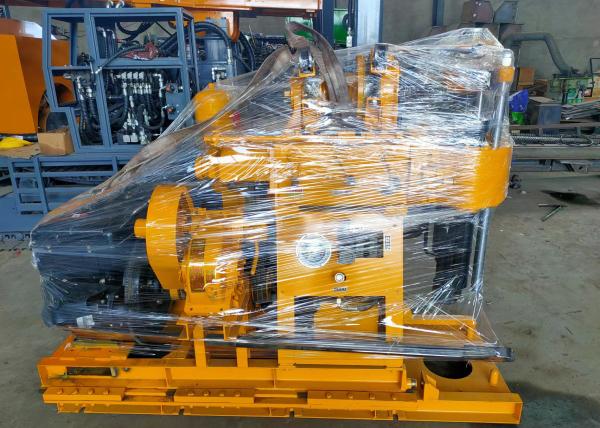

220v Hydraulic Borewell Machine Geological Core Exploration 150 Meters Depth Portable Images
|
