GK 200 Customized Drilling 200 Meters Depths Hydraulic Borehole Drilling Rig Machine
GK 200 Borehole Drilling Rig Machine Product Description:
It is a vertical shaft core drilling machine which is mainly engaged in diamond drilling and is suitable for various drilling process requirements. It can be matched to the corresponding motor or diesel engine. The rig structure is simple to disassemble and easy to operate.Geological survey exploration, road and high-rise building foundation exploration, various concrete structure inspection holes
GK 200 Borehole Drilling Rig Product Parameter:
| Drilling Rig |
| Drilling diameter(mm) | 75,91,110,130,150,300 |
| Drilling depth (m) | 200,150,100,70,50,30 |
| Drill pipe diameter (mm) | 42,50 |
| Drilling angle(°) | 90~75 |
| Equipment size(L * B * H) | 1730 * 860 * 1360 (mm) |
| Rig weight (except engine) | 700 |
| Gyrator |
| Spindle speed (four gear) (r/min) | 115,230,505,1010 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Spindle maximum output torque(KN• m) | 1.5 |
| Winch assembly |
| Winch maximum lifting force (single rope) | 20 |
| Reel speed (r/min) | 20,39,85,170 |
| Reel circumferential speed(m/s) | 0.172,0.345,0.738,1.476 |
| Reel diameter(mm) | 140 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 40 |
| Brake diameter(mm) | 278 |
| Brake band width (mm) | 50 |
GK 200 Drilling Rig Advantages & Features
1. With the hydraulic feeding mechanism, improve the drilling efficiency, reducing the labor intensity of workers.
2. The rig is equipped with a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown, high work efficiency convenient operation, safe and reliable.
3. Furnished with hole bottom pressure gauge pressure indicator, and easy to master the status inside the hole.
4. The handle centered, convenient operation.
5. The drilling machine has the advantages of compact structure, small volume, light weight, convenient move.
Gk 200 Customized Drilling Rig Machine Service
1. Drilling Rig strictly according to ISO9001 standard
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service, feel free contact us.
Product Tags:
|
|

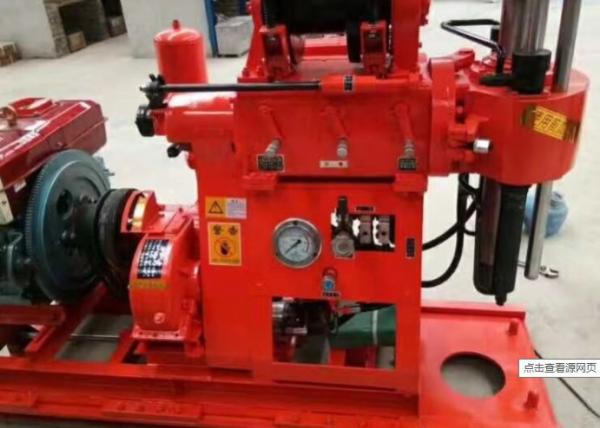

Customized Drilling 200 Meters Depths Hydraulic Borewell Machine Images
|
