ST-200 Mineral Diesel 22HP Borehole Drill Rig

Name: ST200 Mineral Diesel 22HP Borehole Drill Rig
Brand: JINZHOU SHITAN
Price: 1 USD

Brand Name : JINZHOU SHITAN

Model Number : ST-200

Certification : CE ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-12 days

Packaging Details : Standard Export Package

Condition : New

Type : Core Drilling Rig

Power Type : Diesel

Usage : Water Well

Warranty : 1 Year

Contact Now

XY Series Borehole Drill Rig Machine For Soil Test, Mineral Prospecting

Product Feature:

xy-2 is a core drilling rig for middle and shallow hole, especially for the soil test. It applies not only to alloy and diamond core drilling with different calibres but also can be used for geological prospecting works, drilling of fluid mineral in superficial layer and shot holes and ventilation holes drilling, drilling on hydrology, water wells and big calibres. It has been widely used on areas such as road and railway construction, water resources and hydropower and architecture.

Product Parameter:

Drilling Depth		200m
Max Open Hole Caliber		300mm
End Hole Caliber		75mm
Drilling Rod Diameter		60mm
Drilling Angle		90°~75°
Drill Rig Moving Stroke		300mm
Power		Diesel engine 22HP
Spindle Speed		64 128 287 557 r/min
Spindle Stroke		450mm
Max.Single Line Lifting Capacity		2400kg
Max.Single Line Lifting Speed		0.41 0.82 1.64m/s
Wirerope Caliber		13mm
Mud Pump		Diesel 170L/min
Work Pressure		1.5Mpa
Water inlet pipe diameter		40mm
Water outlet pipe diameter		30mm

ST-200 Mineral Diesel 22HP Borehole Drill Rig

Product Tags:

Diesel 22HP Borehole Drill Rig

Mineral Borehole Drill Rig

ST200 rock drilling machine

China ST-200 Mineral Diesel 22HP Borehole Drill Rig wholesale

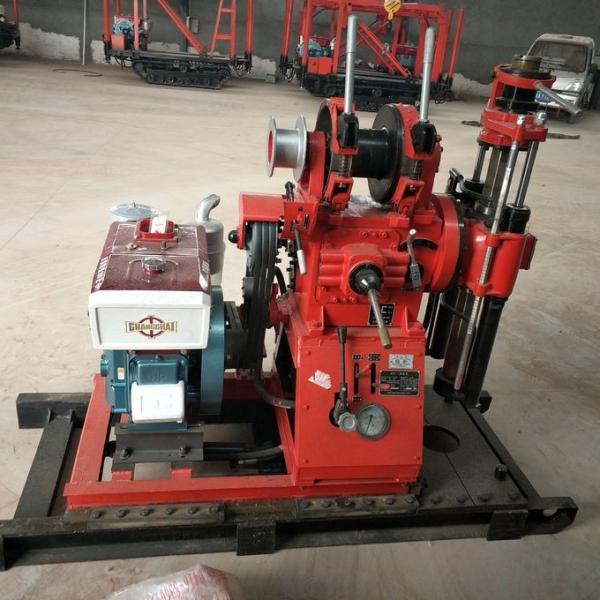

ST-200 Mineral Diesel 22HP Borehole Drill Rig Images
