GK-180 drilling rig is developed to synthesize the advantages of various drilling rigs. The new kind of shallow hole drilling rig is mainly used in engineering geological survey and secondly used in core drilling.
1 Application
1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.
1.2 Geological core drilling, physical prospecting.
1.3 Small grout Confucius, drill hole drilling.
1.4 Small well drilling.
The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability. It is compact, small in size, light in weight, strong in decomposition and easy to remove .
Our drilling rigs are widely used in water well drilling,geological exploration,construction building exploration,drilling inspection of concrete structure holes,river dam construction,subgrade grouting hole drilling abd direct grouting,ground temprerature central conditioning construction,etc..
Drilling rig and accessaries technical parameters and specification is as the following:
| 1.Drilling Rig Technical Parameters |
| Drilling Depth(m) | 50~100m |
| Max. Open Hole Diameter(mm) | 260 |
| End Hole Diameter(mm) | 75 |
| Drill Rod Diameter | 50mm |
| Drilling Angle | 90~75 |
| Drill Weight (No include power) | 810kg |
| Overall Dimension | 2500*900*1300mm |
| 2.Spindle |
| Spindle Speed | 142,285,570r/min |
| Spindle Stroke | 450mm |
| 3.Hoist |
| Max. Single Line Hoisting Capacity | 960kg |
| Reel Lifting Speed | 0.41,0.82,1.64m/s |
| Tightrope Diameter | 10mm |
| Tightrope Cubic Measure | 27mm |
| Hug Follgate Belt Width | 70mm |
| 4.Mud Pump |
| Type | Horizontal Single Urn Twin-action |
| Discharge/Displacement | 95/77L/Min. |
| Diesel | S1105 18HP |
| Electric Motor | 11KW,1440r/min |
| Max. Pressure | 1.2Mpa |
| Work Pressure | 0.7Mpa |
| Water Inlet Diameter | 30mm |
| Water Outlet Diameter | 25mm |
| Triangle Conveyre Belt | B1575mm |
Product Tags:
|
|

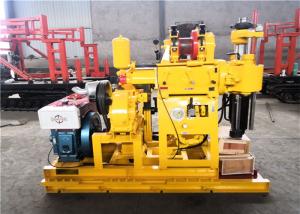

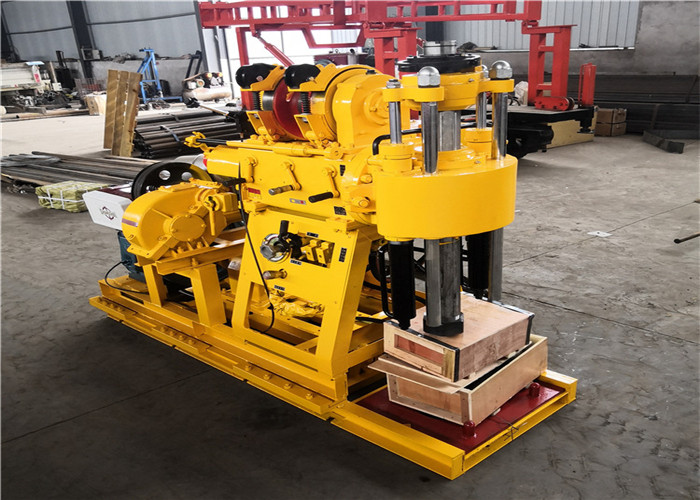

GK-180 One Man 180m Hydraulic Borewell Machine Images
|
