100m Crawler ST-1A-100 Hydraulic Borewell Machine

Name: 100m Crawler ST1A100 Hydraulic Borewell Machine
Brand: JINZHOU SHITAN
Price: 2800 USD

Brand Name : JINZHOU SHITAN

Model Number : ST-1A-100

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : USD2800-USD4200

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-10 days

Packaging Details : Plastic film and Standard export wooden box

Drilling Depth : 100m

Drill Rod Diameter : 42mm

Diesel Engine : 12.1KW

Rated Speed : 2200r/min

Oil Pump Pressure : 12.5mpa

Spindle Speed : 142/285/570r/min

Machine Size : 1640*1030*1440mm

Contact Now

Small-Sized Crawler-Mounted Water Well Drilling Rig for Irrigation Drilling

Product Description:

ST-1A-100 drilling rigs are perfect for the most remote locations where travel may require packing light. Hydraulic drills offer added power to drill through tough soil conditions, including rock. Jinzhou Shitan's Crawler-Mounted Water Well Drilling Rig series can drill to depths of 100m. Each water well drill kit fits into compact shipping compartments, in some cases a single crate, to allow easy and economical shipping anywhere in the world.
The ST series drilling rigs can be used in a variety of applications beyond water well drilling, including soil sampling, geotechnical testing and auger drilling.

Detailed Parameters of ST-1A-100 Water Well Drilling Rig

Unity machine parameter
Drilling depth	100m
Rrill Rod dia	42mm
Max. open hloe caliber	110mm
Drilling angle	90°~75°
Drill weight (No include power)	500kg
Unity machine dimensions	164010301440
Swivel Head
Spindle speed	142/285/570r/min
Spindle stroke	450mm
Hoist
Max.single line hoisting capacity	10KN
Wire rope diameter	9.3mm
Wirerope cubic measure	27m

Mud pump
Type	Horizontal single urn twin-action
Displacement	95L/min
Maximum pressure	1.2Mpa
Work pressure	0.7Mpa
Power
Diesle engine	ZS1100------12.1KW
Electric motor	Y132M—4 7.5KW

100m Crawler ST-1A-100 Hydraulic Borewell Machine

Product Tags:

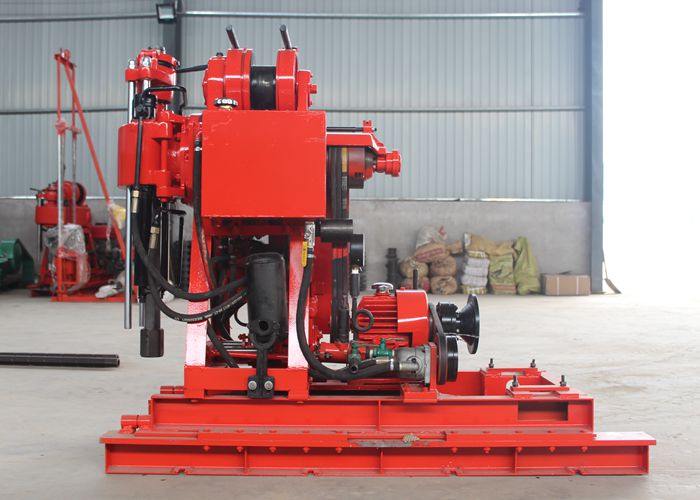

100m Crawler ST-1A-100 Hydraulic Borewell Machine Images
