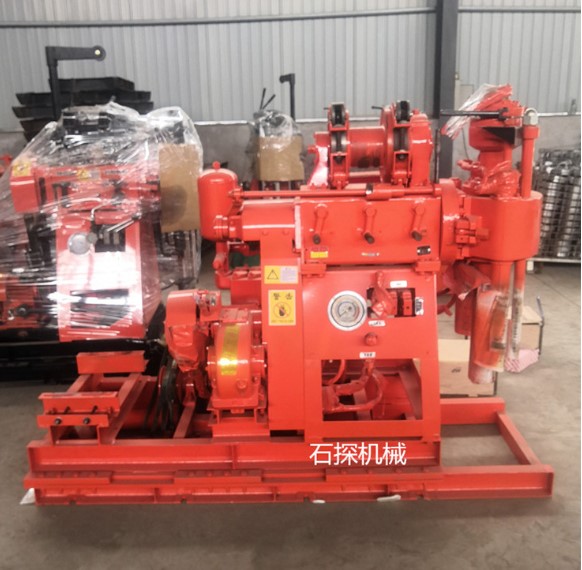

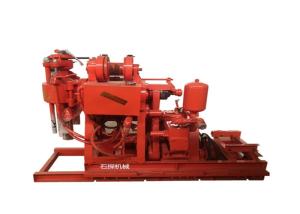

Mining Hard Rock 200 Meter Borehole Drilling Machine

Product Categories

Jinzhou City Shitan Machinery Equipment CO. LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Mining Hard Rock 200 Meter Borehole Drilling Machine
Brand: ShiTan
Price: 4500 USD

Brand Name : ShiTan

Model Number : ST200

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : USD4500-6200

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 2000sets/year

Delivery Time : 7 days after payment

Packaging Details : Plastic film and Standard export wooden box

Name : mining drill rig

Weight : 600kg

drill depth : 200M

Warantee time : 6 months

OEM : OK

Contact Now

OEM Hydraulic Drilling Rig / Borehole Drilling Machine With 6 Months Warantee

Product Description

1.Mounted on a trailer.

2. It constitute of Gyroscope,Windlass,Water pump and Oil pump.

3. It can drill various soft and hard rock.

4. Certification: ISO9001

Parameter

Product Name	GK200
Drilling hole diameter	75,91,110,130,150,300mm
Drilling depth	30,50,70,100,150,200m
Drill pipe diameter	42mm
Borehole inclination	90~75°
Rig dimension(L×W×H)	1710×860×1360
Drill weight	585kg
Used	Drilling,water conservancy drilling,engineering drilling

Drilling Rig
Drilling diameter(mm)	75,91,110,130,150,300
Drilling depth (m)	200,150,100,70,50,30
Drill pipe diameter (mm)	42,50
Drilling angle(°)	90~75
Equipment size(L * B * H)	1730 * 860 * 1360 (mm)
Rig weight (except engine)	700
Mobile device
Moving length	350mm
Leave distance	300mm
Gyrator
Spindle speed (four gear) (r/min)	115,230,505,1010
Spindle travel(mm)	450
Spindle no-load lifting maximum moving speed(m/s)	0.05
Spindle no load drop maximum movement speed(m/s)	0.067
Spindle maximum feed pressure(KN)	15
Spindle maximum lifting force(KN)	25
Spindle maximum output torque(KN• m)	1.5
Winch assembly
Winch maximum lifting force (single rope)	20
Reel speed (r/min)	20,39,85,170
Reel circumferential speed(m/s)	0.172, 0.345, 0.738, 1.476
Reel diameter(mm)	140
Wire rope diameter(mm)	9.3
Wire rope density (m)	40
Brake diameter(mm)	278
Brake band width (mm)	50
Pump type	Horizontal single cylinder double acting
Maximum displacement (motor)(L/min)	95 (77)
The maximum allowable pressure (Mpa)	1.2
Work pressure (Mpa)	0.7
Cylinder diameter (mm)	80
Piston stroke(mm)	100
Oil pump
Oil pump type	YBC-20/125
Nominal pressure (Mpa)	12.5
Rated flow(ml/r)	20
Rated speed(r/min)	800-2500
Diesel engine or motor
Diesel engine	1110
Rated power (KW)	16.2
Rated speed (r/min)	2200
Rated pressure(Mpa)	12.5
Motor type	Y160M - 4
Rated power (KW)	11
Rated speed (r/min)	1460
