Rock Sampling 150m Mobile Borehole Drilling Machine

Name: Rock Sampling 150m Mobile Borehole Drilling Machine
Brand: JINZHOU SHITAN
Price: 1 USD

Brand Name : JINZHOU SHITAN

Model Number : GXY-1

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-12 days

Packaging Details : Standard Export Package

Product Name : Soil Testing Drilling Rig Machine

Geological : Soil, Rock, Hard Rock

Type : Portable Type

Application : Different Field Drilling

name : core drilling machine

name2 : core drilling machine for mining

Contact Now

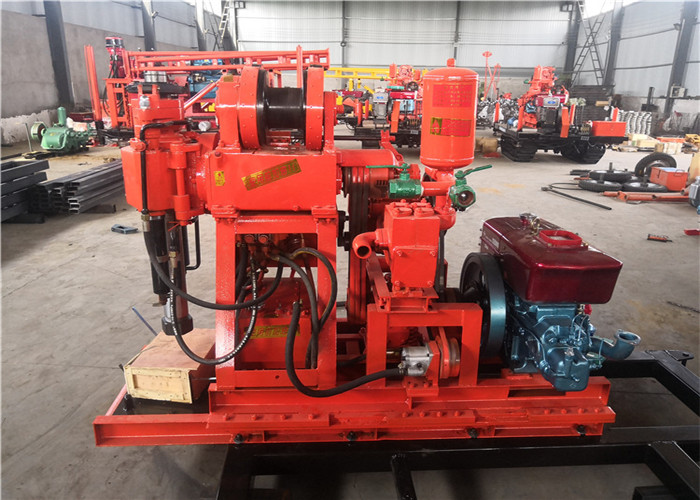

GXY-1 Core Drilling Rig Mining Drill Sampling Geological Investigation Drilling Rig

1. Model GXY-1 drilling rig is a kind of spindle rotatory drilling rig. It was developed by Wuxi Mineral Exploration Machinery General Factory, Jiangsu Province. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, water discharge tunnel,it is aso could for explore coal mine.
2. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation.

3. Light in weight, the rig can be disassembled easily, the biggest apparatus is in 200kg. The whole drill is in500kg, it can be moved easily especially in mountain area.

4.Specification:

Type	GXY-1
Hole depth	150m
Hole diameter	110mm
Final hole diameter	75mm
Diameter of drill rods	Φ42/50mm
Drilling angle	90°-75°
Dimension(LWH)	164010301440mm
Weight(without power unit)	500KG
Rotary head	Direct rotary speed	142;285;570 r/min
	Feeding stroke	450mm
	Lifting capacity	25kN
	Feeding capacity	15kN
	Max. Torque	1200N.m
Hoist	Running speed of drum	55;110;220 r/min
	Max. lifting capacity, single line	10KN
	Diameter of steel wire rope	9.3mm
	Capacity of drum	27m
Mud pump(Horizontal Single-acting)	Max. displacement	77L/min
	Max. pressure	1.2Mpa
	Stroke	100m
	Stroke per Minute	96min
	Diameter of liner	80mm
Oil pump (YBC-12/80 Gear pump)	Pressure	8Mpa
	Displacement	8ml/r
	Speed	1500r/min
Power unit	Electric motor Model Y132M-4	7.5KW,1440r/min
Power unit	Diesel engine Model S1100	10.3KW,2200r/min

GXY-1 Core Drilling Rig Mining Drill Sampling Geological Investigation Drilling Rig

Rock Sampling 150m Mobile Borehole Drilling Machine
