General Survey Core Exploration Drilling Rig Machine For Sampling

Name: General Survey Core Exploration Drilling Rig Machine For Sampling
Brand: ShiTan
Price: 1 USD

China General Survey Core Exploration Drilling Rig Machine For Sampling wholesale

Brand Name : ShiTan

Model Number : XY-1A

Certification : ISO9001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, T/T, Western Union

Supply Ability : 2000set/year

Delivery Time : Within 7-12 days

Packaging Details : Standard Export package

Type : General Survey Core Exploration Drilling

Model Numbe : XY-1A

Drilling depth : 30-100m

Max. open hloe caliber : 220mm

Power(W) : 13000w

Usage : For Sampling

Contact Now

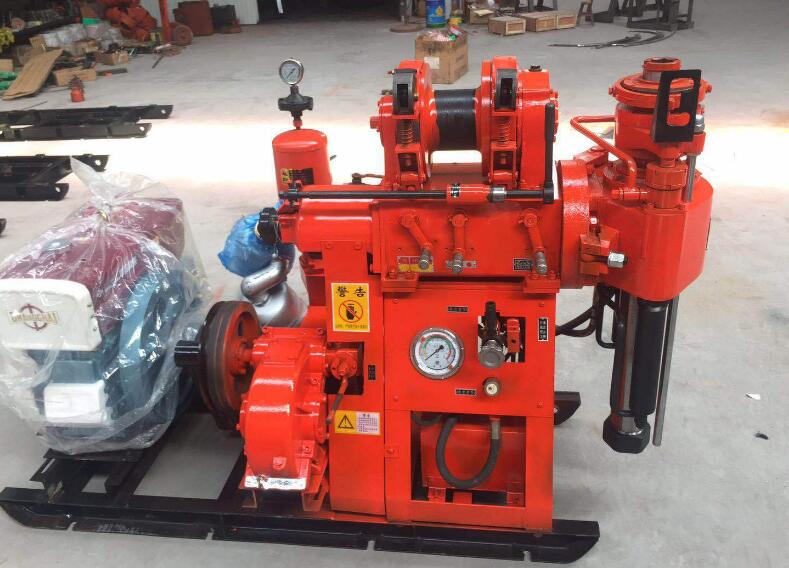

General Survey Core Exploration Drilling Machine For Sampling

Description:

General Survey Core Exploration Drilling Machine is a shallow ho sale drilling rig, with high-speed vertical light drilling rig, mainly used in shallow geological exploration, engineering construction, family water wells or farm irrigation wells.

Drilling specifications:

Drill depth: 100 m,

Drill Diameter: 50mm, 100mm, 150mm ( based on customer detail requirement)

Geological structure: Soil, sandy, rock, hard rock,

Rig Weight: 600 KG( not including Walking device)

Drill efficiency: 6-9 meters per hour for drilling soil

2-3 meters per hour for drilling rock

Applications:

1. Used for general survey exploration, geophysical exploration, road and building exploration, blasting holes and other drilling projects;

2, according to the formation of different choice of alloy, steel sand and steel particles and other bits for drilling;

3, can drill 2-9 class sand clay and bedrock layer.

Main features:

1, with oil pressure automatic feeding mechanism, drilling efficiency is high.

2. The upper ball clamping mechanism is adopted to replace the chuck, and the backstroke can be implemented without stopping.

3. Centralized handle, convenient operation, safe and reliable.

4. Compact structure, drilling rig, water pump and diesel engine are all installed on the same base frame, occupying a small area of the site.

5, light weight, strong decomposition, easy to move, suitable for plain and mountain work.
