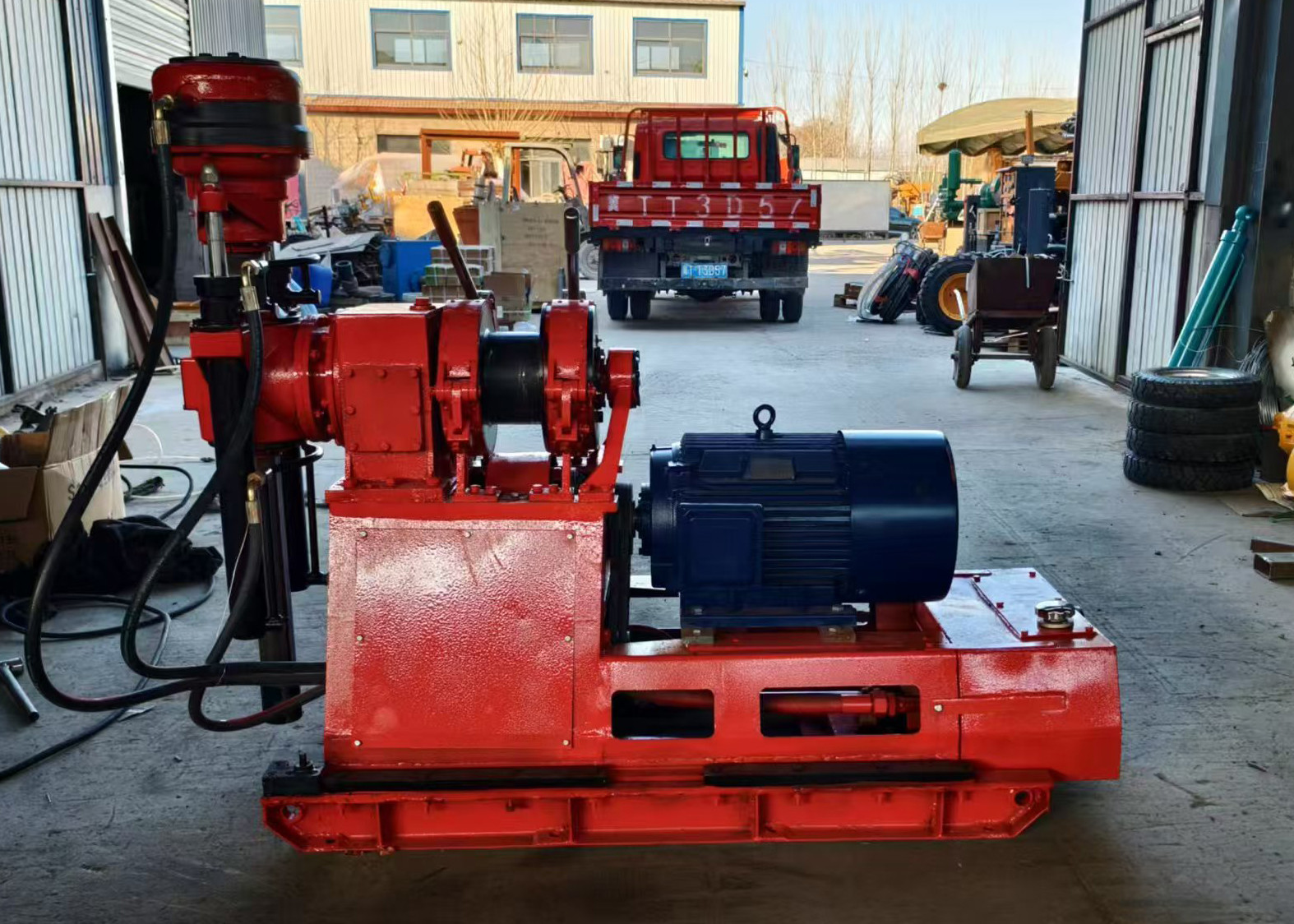

XY-2PC core exploration drilling rig
Product Description
The XY-2PC drilling rig has become the preferred equipment for small and medium-sized geological and engineering exploration projects due to its portability, process flexibility, and moderate depth operation capability. In practical applications, it is necessary to configure drilling tools reasonably according to the hardness of the formation, drilling depth, and process requirements (such as whether continuous coring is required), and pay attention to equipment fixation and flushing fluid management to ensure drilling efficiency and safety.
Product Tech Data
| Drill rig specification |
| Drilling depth | 300m |
| Drilling Diameter(Multiple diameters) | 91mm,110mm,130mm,150mm,300mm |
| Drilling rod diameter | 50mm |
| Drilling Angle | 0°-90° |
| Dimensions(L×W×H) | 1720×800×1300 (mm) |
| Weight | 650kg |
| Swivel Head |
| Spindle Speed | 164, 298, 334, 587, 1190 r/min |
| Spindle stroke | 500mm |
| Spindle Dia. | Φ59mmx53mmx5500mm Kelly rod |
| Spindle lifting capacity max | 25KN |
| Hoist |
| Max. Lifting capacity(single rope) | 20KN.m |
| Lifting rotating speed | 20; 40; 90; 168r/min |
| Wire rope diameter | 14 |
| Wire rope capability | 30KN |
What are the maintenance methods for XY-2PC drilling rig
The maintenance of XY-2PC drilling rig should follow the principle of "prevention first, mandatory maintenance", focusing on lubrication, sealing, cleaning, and fastener status, especially paying attention to the oil management of the transmission system and hydraulic system. Through standardized maintenance, the accident rate inside the hole can be effectively reduced, the service life of the drilling rig can be extended (the whole machine life can reach 8-10 years under normal maintenance), while ensuring operational efficiency and personnel safety. In practical operation, it is recommended to develop a personalized maintenance checklist based on the equipment manual and on-site conditions, and have professional personnel perform the dismantling and inspection of complex components.
Safety precautions
1. Operators must undergo professional training, be familiar with the performance and operating procedures of the drilling rig, and hold a certificate to work.
2.During the operation of the drilling rig, it is strictly prohibited to touch the rotating parts with hands, and any repair or maintenance work is not allowed.
3.When lifting and lowering the drill, attention should be paid to preventing the drill rod from falling and injuring people, and the operator should stand in a safe position.
4. The construction site should be equipped with necessary safety protection equipment, such as safety helmets, protective shoes, etc.
5. In the process of drilling, if accidents such as stuck or buried drilling occur, drilling should be stopped immediately, corresponding measures should be taken, and it is strictly prohibited to forcefully pull out the drilling tools.
