200 Meter Deep GY200 Crawler Type Soil Testing Drilling Rig Geological Exploration Core Sampling Equipment

Name: 200 Meter Deep GY200 Crawler Type Soil Testing Drilling Rig Geological Exploration Core Sampling Equipment
Brand: JINZHOU SHITAN
Price: 1 USD

China 200 Meter Deep GY200 Crawler Type Soil Testing Drilling Rig Geological Exploration Core Sampling Equipment wholesale

Brand Name : JINZHOU SHITAN

Model Number : Gy 200

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 20000 sets per year

Delivery Time : 7-12 days

Packaging Details : Standard Export Package

Product Name : Gy 200 Soil Testing Drilling Rig

Drilling Depth : 300m

Drilling Diameter : 75-200mm

Type : Borehole Drilling Machine

Power Type : Diesel

Usage : Water Well,geological exploration

Voltage : 380V

Power(W) : 16.2kw

Dimension(L*W*H) : 1730*860*1360mm

Weight : 2.5T

Contact Now

200-Meter-Deep GY200 Crawler-Type Soil Testing Drilling Rig Geological Exploration Core Sampling Equipment

GY 200 Borehole Drilling Machine Information:

The GY200 series soil monitoring drilling rig is a lightweight and versatile engineering exploration equipment, primarily used in geological surveys, environmental monitoring, foundation detection, and small-scale pile foundation construction. Below is a comprehensive summary of its core information

GY 200 Borehole Drilling Machine Technical Data:

Drilling depth	60 225 295m
Drilling diameter	300 76 46mm
Drill pipe diameter	50 42mm
Spindle Turnable Angle	0-360degree
Net weight(excluding the power machine)	670kg
Dimension(lengthwidthheight)	18209801400mm
Revolving Plate
Spindle speed	900 475 388 205 157 68 r/min
Maximum torque	2000N*m
Driving travel	400mm
Maximum Cylinder driving force	2,9000N
Maximum Cylinder lifting force	3,9000N
Lifter
Lifting capacity	3,0000N
Bobbin line speed (2 layers)	0.27 0.64 0.83 1.58 1.64 m/s
Bobbin diameter	135mm

Core Functions and Features

Working Principle
- Utilizes the high-frequency impact principle driven by an air compressor to achieve undisturbed sampling, minimizing damage to the stratum.
- Low-speed, high-torque design suitable for various complex geological conditions (e.g., rock formations, soil).
Performance Parameters
- Drilling Depth: 150-295 meters (varies by model and configuration).
- Aperture Range: 46-300 mm, compatible with diamond bits and other drilling tools.
- Power System: Optional diesel engine (e.g., ZS 1110 type, 14.7kW) or electric motor (15kW).
- Speed & Torque: Forward speed 68-900 rpm, reverse 256-85 rpm, maximum torque 2000N·m.
- Structure Design: Rubber crawler chassis enhances terrain adaptability; compact size (≈1.8×0.98×1.4 meters) and weight 600-750kg for easy relocation.
Technical Advantages
- Hydraulic feed system for simplified operation and improved efficiency.
- Adjustable drilling tower angle (0°-360°) to accommodate different inclinations.
- Winch combines friction cone and planetary gear for stability.

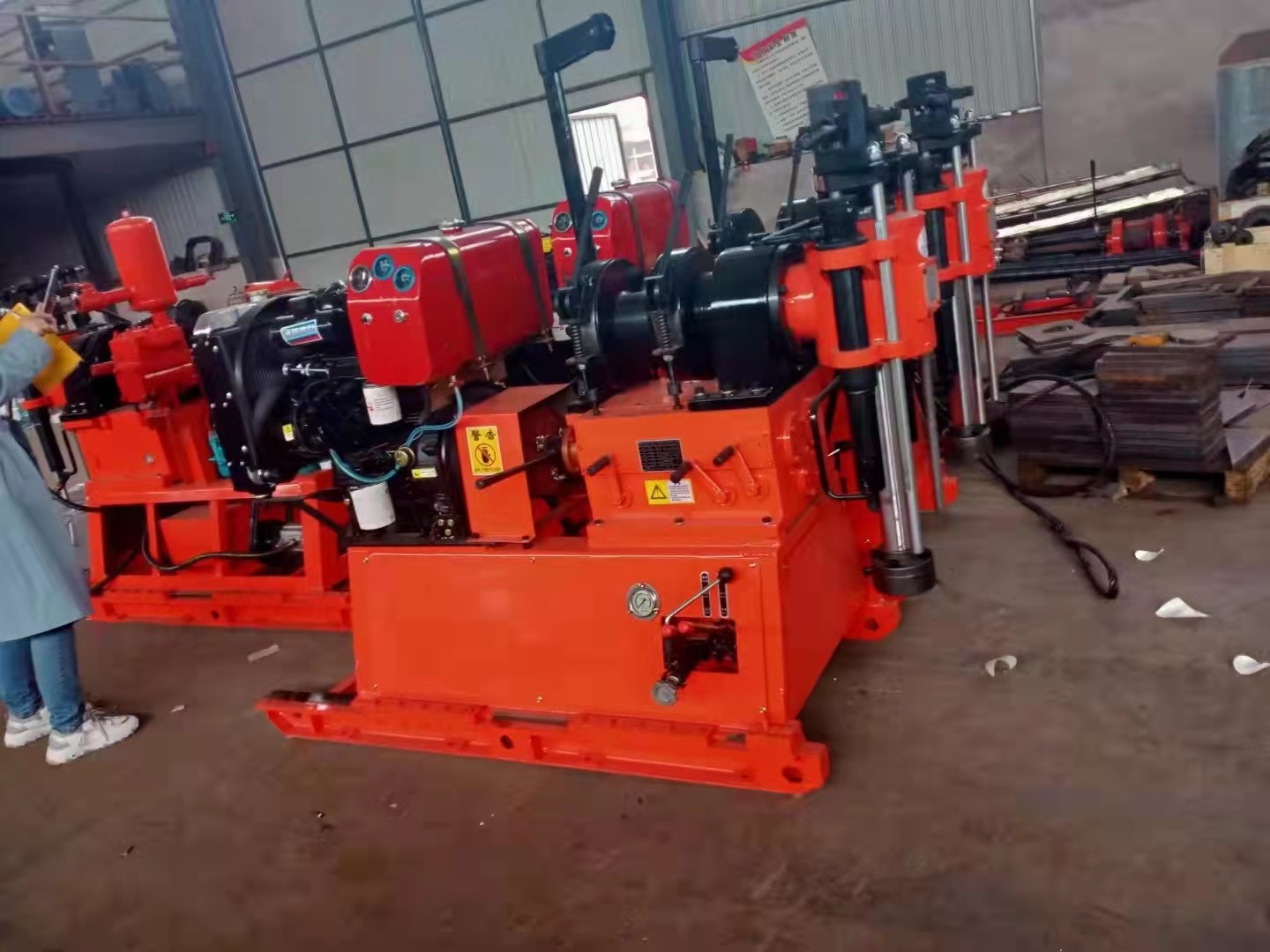

200 Meter Deep GY200 Crawler Type Soil Testing Drilling Rig Geological Exploration Core Sampling Equipment
