100 Meters Depth Geotechnical Investigation SPT Trailer Mountd Drilling Rigs
Product Description:

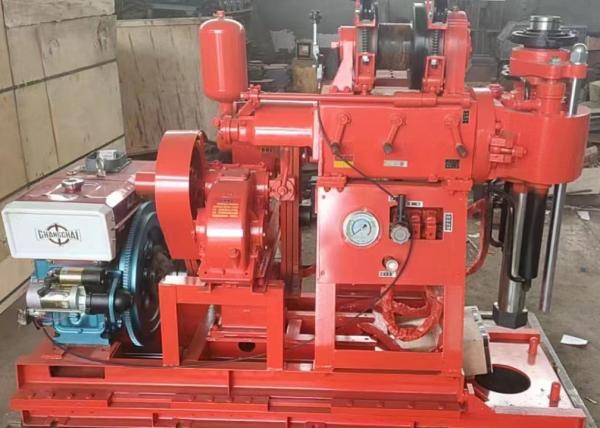

XY-100 drilling rig is suitable for census exploration, geophysical exploration, road and building exploration and drilling projects such as blasting.
The open, simple design of our exploration drill rigs has been proven time and again in the toughest working environments. The drilling rig can reach a depth of 100m, which is convinent for family end use, either for water well drilling or irrigation purpose.
Product Techicals
| Drilling Rig | | Mud pump | |
| drilling depth | 100mm | type | Horizontal single cylinder double acting |
| Drill pipe diameter | 42mm | When equipped with diesel engine | 95 L/min |
| Opening diameter | 110mm | When equipped with a motor | 77 L/mm |
| End hole diameter | 75mm | maximum allowable pressure | 1.2Mpa |
| Drilling inclination | 90°-75° | Continuous working pressure | 0.7Mpa |
| Rig size (L*W*H) | 1640*1030*1440(mm) | Suction pipe diameter | 32mm |
| Rig weight (without power) | 500kg | Drain pipe diameter | 25mm |
| Transfer itinerary | 350mm | oil pump | |
| gyrator | | model | YBC-12/125 |
| Vertical shaft speed (third gear) | 142,285,570 r/min | Nominal pressure | 12.5Mpa |
| Vertical axis travel | 450mm | Nominal flow | 8 ml/r |
| Maximum moving speed of vertical shaft without load | 0.05m/s | Nominal speed | 800-2500 r/min |
| Maximum moving speed of vertical shaft without load | 0.067m/s | Power engine (diesel engine or electric motor) | |
| Maximum feed pressure of vertical shaft | 15KN | Diesel model | ZS1100 |
| Maximum lifting capacity of vertical shaft | 25KN | rated power | 12.1KW |
| hoist | | Rated speed | 2200 r/min |
| Maximum lifting force (one speed, single rope) | 10KN | Motor model | Y132M-4 |
| Reel capacity | 27m | rated power | 7.5KW |
| Wire rope diameter | 9.3mm | Rated speed | 1440 r/min |
Product Main Advantages
1. Adopting model auto transmission, has 10 rotation speeds and reasonable speed range, with eight forward rotation gears and two reverse rotation gears, high speed, strong stroke and wide application.
2. Large engine power and two reverse rotation gears, can easily solve the drilling work accident.
3. The operation handles fixed in reasonable layout to make it more convenient for workers to operate the machine.
4. Equipped with normally closed hydraulic chuck, operation flexible and reliable.
5. Spindle and hoist can be operated separately.
6. Spindle has big inner diameter, able to use big hexagonal drilling rod.
Why is the water well drilling rig not suitable for use in rainy days?
After the well is completed, it is necessary to pump water to check the results. Under normal circumstances, a large draw down pumping can be done. The stable duration of the water level shall not be less than eight hours, and the water flow of the dynamic water level of the well shall be measured at the same time. The well drilling project shall ensure the smooth drainage of the construction site, so the rainy season shall be avoided. When working while excavating, the excavation slope shall be determined according to the physical and mechanical properties of the soil layer, generally 1:1.5, and there shall be a certain distance from the toe of the spoil slope to the upper opening of the excavation. For large wells with water inflow from the shaft wall, the water inlet hole and inverted filter layer of the shaft wall must be arranged according to the design requirements, and the water inlet hole shall be prevented from being blocked during construction. The filter material enclosure at the aquifer shall meet the requirements, the backfill shall have a certain super elevation, and the frozen soil in the backfill in winter shall not exceed 15%.
use of hydraulic elevators
Hydraulic elevators are widely used in various industrial enterprises and production lines, such as automobile, container, mold manufacturing, wood processing, chemical filling, etc., to meet the lifting requirements of different operation heights. A. With various control methods (transfer, linkage, explosion-proof), they are characterized by stable and accurate lifting, frequent starting, large load, etc, Effectively solve all kinds of lifting operation difficulties in industrial enterprises, making production easy
Product Tags:
|
|
OEM 100m Trailer Mounted Drilling Rig For Geotechnical Investigation Images
|
