Easy Movement 300 Meters Detph Farming Geological Drilling Rig For Civil Construction

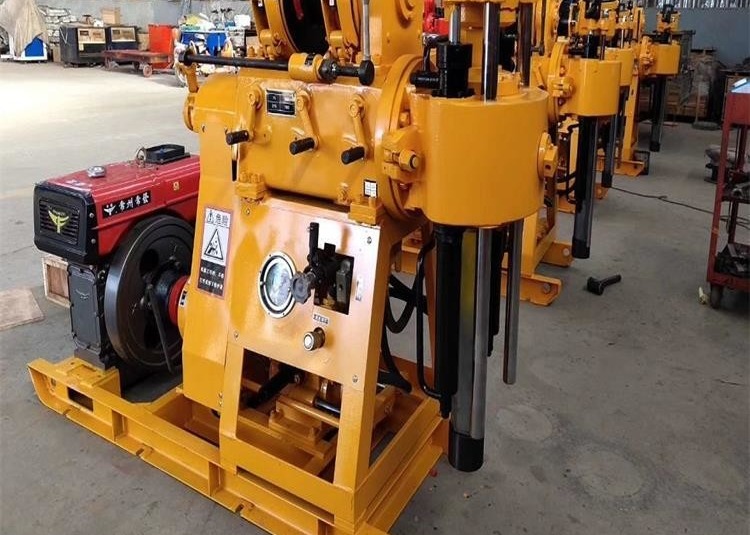

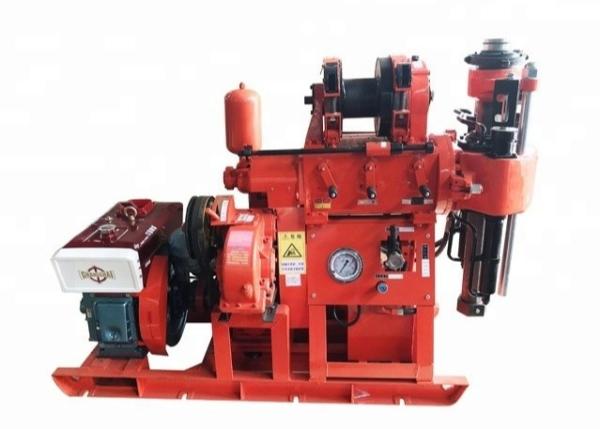

GY 200 Geological Drilling Rig Introduction:
GY-200 's drilling depth is 300 meters ,hole diameter is 300 mm.It was designed for geologic structure prospecting of industrial and civil constructions, such as railways, bridges and hydroelectric projects. The drilling machine could also being used for small calibre piling foundation works
GY 200 Geological Drilling Rig Technical Parameters:
| Drilling depth | 60-295m |
| Drilling diameter | 300mm 76 46mm |
| Drill pipe diameter | 50 42mm |
| Spindle Turnable Angle | 0-360degree |
| Net weight(excluding the power machine) | 670kg |
| Dimension(length*width*height) | 1820*980*1400mm |
| Revolving Plate |
| Spindle speed | 900 475 388 205 157 68 r/min |
| Maximum torque | 2000N*m |
| Driving travel | 400mm |
| Maximum Cylinder driving force | 2,9000N |
| Maximum Cylinder lifting force | 3,9000N |
| Lifter |
| Lifting capacity | 3,0000N |
| Bobbin line speed (2 layers) | 0.27 0.64 0.83 1.58 1.64 m/s |
| Bobbin diameter | 135mm |
GY 200 Geological Drilling Rig Technical Advantage:
Drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole,drilling and driect grouting,civil wellsand earth temperature central air-conditioner,etc.
Engineering Geological Survey
It can be divided into: (1) geophysical exploration: lithology, groundwater level, karst cave distribution, etc. are divided according to the conductivity, magnetism, density and the propagation speed of elastic wave in different underground strata and media (water, cavity, rock, etc.). Guide drilling. (2) Drilling: combined with pit (groove) exploration. 3) penetration: it is both an exploration method and an in-situ test method.
What is the best time to do soil sampling?
Soil samples can be taken any time throughout the year. It is important though to sample approximately the same time of the year. Late summer, or early fall, is a good time for most crops. This allows time for lime recommended to react and change the pH before the crop is planted.
