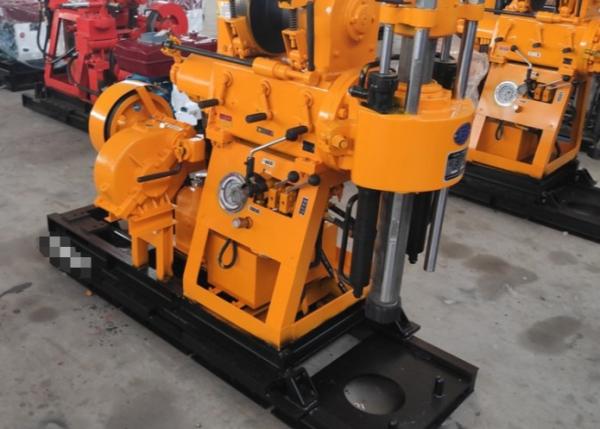

XY-1 A 150 Meters Easy Operation And Movement Geological Drilling Rig
XY-1A Geological Drilling Rig Introduction:
This is a portable drilling rig with oil pressure feed. Rated drilling depth 150m; The drilling depth depends on the formation conditionsIt is suitable for industrial and civilian drilling, geothermal drilling and other well holes, especially for water intake projects in rock formations in mountainous areas..
XY-1A Geological Drilling Rig Parameter:
| Drilling depth | 150m |
| Drill rod caliber | 50 42mm |
| End hole caliber | 75 46mm |
| Max. open hloe caliber | 220mm |
| Drilling angle | 90°~75° |
| Drill weight (No include power) | 610kg |
| Unity machine dimensions | 2.1*0.9*1.3m |
| Spindle |
| spindle speed | 130, 300, 480, 730, 830, 1045r/min |
| Spindle stroke | 450mm |
| Hoist |
| Max.single line hoisting capacity | 1600kg |
| Single line lifting speed | 1.06, 0.67, 0.32m/s |
| Wirerope caliber | 13mm |
| Wirerope cubic measure | 35m |
| Hug floodgate caliber | 254mm |
| Hug folldgate belt width | 50mm |
| Distance between drill and hole | 230mm |
| Mud pump |
| Type | Horizontal single urn twin-action |
| Displacement | 170L/min |
| Maximum pressure | 1.5Mpa |
| Work pressure | 0.7Mpa |
| Power |
| Diesle engine | S1105 18HP |
| Electric motor | Y160M—4 15KW
|
XY-1A Geological Drilling Rig Characteristic:
1. It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.
2. Easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
3. It has hole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountain areas.
What is the best time to do soil sampling?
Soil samples can be taken any time throughout the year. It is important though to sample approximately the same time of the year. Late summer, or early fall, is a good time for most crops. This allows time for lime recommended to react and change the pH before the crop is planted.
How To Seek Water:
According to the geographical location, it is well known that water flows to the place. As the saying goes, it is most beneficial to find water in the pinch land surrounded by mountains on three sides. Because of the low-lying terrain, the groundwater will flow to the pinch mouth. There is a high probability of drilling wells near the pinch mouth to get water. The two ditches intersect, and the spring water is choppy, that is, there may be water accumulation under the mountain mouth at the intersection of the two ditches.
