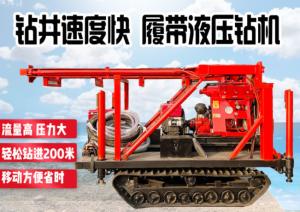

295mm Diameter Trailer Mounted Drilling Rigs Gk 200 Small Hydraulic Drilling Equipment

  • 1
  • 2

Brand Name : ShiTan

Model Number : GK-200

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD4500-5800/SET

Payment Terms : T/T, Western Union

Supply Ability : 20000 sets per year

Delivery Time : Within 7-12 days

Packaging Details : exported packing

Name : GK 200 Trailer Mounted Drilling Rigs

Max Drilling Depth : 200 meter

Drilling diameter : 295mm

Power Type : diesel or motor

Voltage : 220v

Application : water well,railways, core

Type : Borehole Drilling Machine

Color : Yellow,Red and Blue

Warranty : 24 months

OEM : Acceptable

Contact Now

GK 200 Trailer Mounted Drilling Rigs For Water Well And Exploration

GK 200 Trailer Mounted Drilling Rigs Description

It is a lightweight shallow hole rig which can be drilling depth max 200M,diamter 75-300mm,with oil pressure feed.Mainly used for geological general investigation and exploration.It is more practical and convenient. Compared with other similar products, the hydraulic high, medium, and low speed drilling rig has light weight, simple structure, and fast drilling speed. It has the advantages of large core sample diameter and other advantages. It is currently the domestic advanced portable hydraulic drilling rig, which is especially suitable for the core coring operation in special difficult terrain such as mountains, hills and rivers.

GK 200 Trailer Mounted Drilling Rigs Product Technicals

Drilling Rig GK 200
Drilling diameter(mm) 75,91,110,130,150,300
Drilling depth (m) 200,150,100,70,50,30
Drill pipe diameter (mm) 42,50
Drilling angle(°) 90~75
Equipment size(L * B * H) 1730 * 860 * 1360 (mm)
Rig weight (except engine) 700
Gyrator
Spindle speed (four gear) (r/min) 115,230,505,1010
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 1.5
Winch assembly
Winch maximum lifting force (single rope) 20
Reel speed (r/min) 20,39,85,170
Reel circumferential speed(m/s) 0.172,0.345,0.738,1.476
Reel diameter(mm) 140
Wire rope diameter(mm) 9.3
Wire rope density (m) 40
Brake diameter(mm) 278
Brake band width (mm) 50

GK 200 Trailer Mounted Drilling Rigs Features

1. Adopt Low speed high torque hydraulic motor drive rotary device output torque
2. The advantage of cylinder is promoting more stable, less failure significantly than the motor propulsion.
3. Equip two filter effectively to ensure the safety of diesel engine intake and prolong engine life.
4. It can readily monitor rig hydraulic system pressure and boost pressure to ensure the rig stable and efficient operation.
5.Using well-known brands of multi-way control valve, superior performance, handle centralized, easy to operate.

GK 200 Trailer Mounted Drilling Rigs Application

The drilling rig is suitable for engineering geological survey of buildings such as civil engineering, railways, hydropower, transportation, bridges, dam foundations, etc.; geological core drilling and physical exploration; small grouting holes, geothermal holes, blasting holes, drilling of various concrete detecting holes Advance; small well drilling, small pile hole.

Rural Water Wells Four Aspects

1, Select appropriate well type

The well types of water source wells are divided into deep wells, large wells, counterpart pumping wells, foreign wells, and small-diameter tube wells. In areas with abundant deep groundwater, it is appropriate to drill deep wells. In areas with abundant shallow groundwater, it is appropriate to drill large wells, counterpart pumping or small-diameter tube wells.

2, Reasonable well layout

The location and layout of wells shall be reasonably arranged according to the local actual hydro geological conditions. If there is no hydro geological data, refer to the existing water source wells around as the basis for the layout of wells. In areas where shallow groundwater is not abundant, shallow wells should not be drilled blindly; In areas with abundant shallow groundwater, it is suitable for farmers to build their own shallow wells, but the well hole layout should not be too dense to avoid the interaction between adjacent water source wells.

3, Configure appropriate water pump

After the well is completed, measure the water level of the water outlet well and the corresponding water output according to the drainage condition of the drilling machine, and then determine the total head of the water pump according to the height difference from the ground to the dynamic water level and the irrigation method you adopt, and the required working head of the water pump. The flow of the water pump shall not exceed the water flow through the well. The corresponding water pump shall be purchased on the premise of the above two items.

295mm Diameter Trailer Mounted Drilling Rigs Gk 200 Small Hydraulic Drilling Equipment295mm Diameter Trailer Mounted Drilling Rigs Gk 200 Small Hydraulic Drilling Equipment295mm Diameter Trailer Mounted Drilling Rigs Gk 200 Small Hydraulic Drilling Equipment295mm Diameter Trailer Mounted Drilling Rigs Gk 200 Small Hydraulic Drilling Equipment295mm Diameter Trailer Mounted Drilling Rigs Gk 200 Small Hydraulic Drilling Equipment295mm Diameter Trailer Mounted Drilling Rigs Gk 200 Small Hydraulic Drilling Equipment
