Gold Mining Diamond Core Drilling 110 mm Hole Diameter Soil Testing Drilling Rig
XY-1A Soil Testing Drilling Rig Introduction
XY-1A drilling rig is a portable drilling rig with oil pressure feed. The rated drilling depth is 150m, the maximum opening diameter is allowed to be 130mm (or within 500mm), and the final hole diameter is 75mm. The drilling depth depends on the formation conditions.
XY-1A Soil Testing Drilling Rig Parameter:
| Drill Rig Information | Swivel Head |
| Drilling depth | Max.150m | Spindle speed | 1010,790,470,295,140(r/min) |
| Hole diameter | Max.130m | Spindle stroke | 450kmm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump |
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | | |
| Rated speed | 1500r/min | | |
| Hoist | Power(diesel) |
| Max. lifting capacity | 15KN | Model(diesel engine | ZS1105 |
| Hoisting drum revolution | 121,76,36(r/min) | Rated power | 12.1KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG |
| SIZE | 1620*970*1560mm |
XY-1A Soil Testing Drilling Rig Advantages
XY-1 drilling rig has oil pressure feeding mechanism to improve drilling efficiency and reduce workers' labor intensity. The drilling rig is equipped with upper ball clamp clamping mechanism and hexagonal active drill pipe, which can reverse the rod without stopping, with high working efficiency, safety and reliability
XY-1A Soil Testing Drilling Rig Application
Geological survey and exploration,
geophysical exploration,
foundation survey of roads and high-rise buildings,
drilling works such as water wells and holes.
According to different geological conditions, bits such as diamond, alloy and steel particles can be selected for drilling.
The five main types of wells are digging, driving, drilling, drilling and jetting (Flushing).
Most digging and drilling equipment is available, or because drilling is considered too expensive, the front hole is built-in. Modern wells are usually lined with concrete tiles and have a large diameter, providing a large opening for the aquifer. This allows them to get water from very fine materials such as sand, silt or clay. The wells are shallow and there is no continuous casing, which makes them polluted by nearby pollution sources.
Product Tags:
|
|

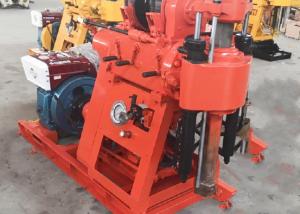

Gold Mining Diamond Core Soil Test Drilling Machine 130 Mm Hole Diameter Images
|
