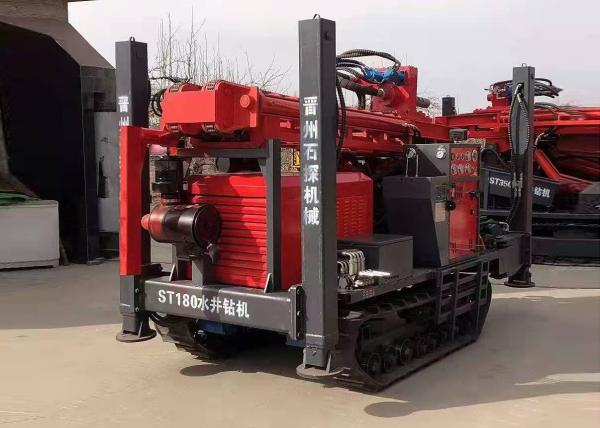

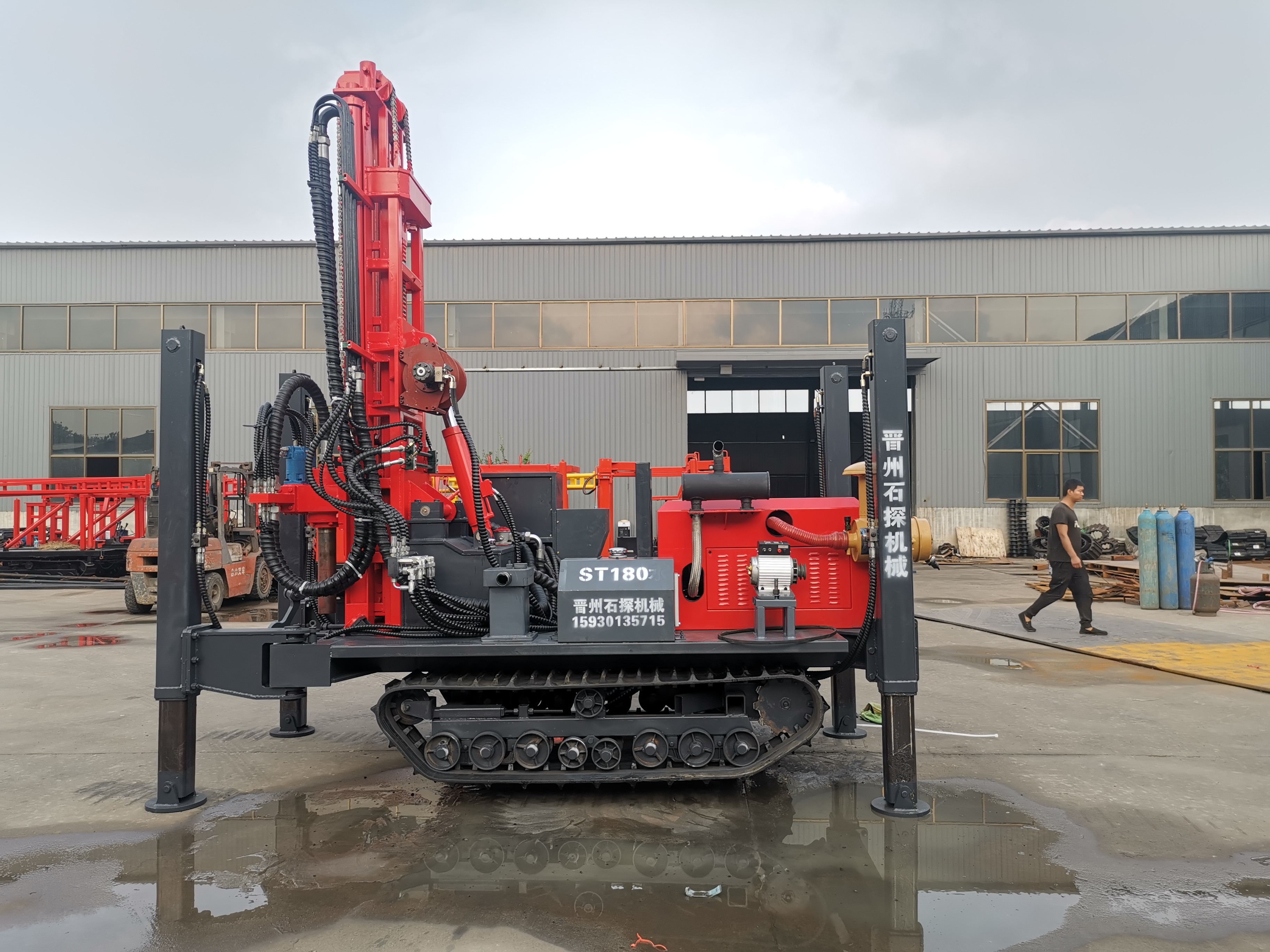

Multifunctional 180m Pneumatic Borewell Machine Portable

  • 1
  • 2

Brand Name : ST

Model Number : ST-180

Certification : ISO 9001

Place of Origin : Hebei ,China

MOQ : 1set

Price : 20000-35000 USD

Payment Terms : T/T, Western Union,

Supply Ability : 2000 sets/month

Delivery Time : 5 -10 days

Packaging Details : Wooden Package

Product Name : ST 180 Meters OEM Customized Pneumatic Borewell Machine

Weight : 4.5T

Drilling depth : 180m

Dimension(L*W*H) : 3800*1500*2200mm

Drilling hole diameter : 105-180mm

Walking speed : 2.5km/h

Climbing angles (Max.) : 30

Equipped capacitor : 55KW

Contact Now

180 Multifunctional Deep Rock Water Drilling Rig Portable Pneumatic Mini Borewell Drilling Rigs Machine

ST 180 Meters OEM Customized Pneumatic Borewell Machine Information

ST180 Water Well Drill Rig can create drilling jobs in different strata, borehole diameter can up to 245-294mm. The rig with hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, air compressor intake design, prolong the service life of diesel engine.

Special pump set design is convenient for maintenance and reduce the cost of maintenance. Centralized
control of the hydraulic controllable, convenient operation.

ST 180 Pneumatic Borewell Machine Techical Data

Product Name

ST 180 drilling rig
Drilling hole diameter
140-254mm
Drilling depth
180m
One-time advance length
3.3m
Walking speed
2.5km/h
Climbing angles (Max.)
30
Equipped capacitor
55kw
Using air pressure
1.7-2.5mpa
Air consumption
17-31m³/min
Drill pipe length
1.5m, 2.0m, 3.0m
Drill pipe diameter
76mm, 89mm
Rig lifting force
12t
Swing speed
45-65rpm
Swing torque
3200-4600(N.m)
Dimension
3800*1500*2200mm
Weight
4500kg


ST180 Pneumatic Borewell Machine Fetures

1.FY180 series water well drilling rig uses full hydraulic control, and the Top drive to drive the rotation
of drilling tools with very high drilling efficiency.

2.Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.

3.Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coal bed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
4.The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

ST180 Pneumatic Borewell Machine FAQ

Q 1: What kind of drilling rig do you have?

A: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement .

Q 2: Where is the address of your company?

A: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China

Q 3: Are you a manufacturer or a trading company?

A:We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China.

Q 4: How long is your delivery time?

A: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance.

Q 5: How long is the warranty of your well drilling rig?

A: Except for consumable spare parts, the whole machine shall be one year.

Q6: How long can your air compressor be used?

A: Normally more than 10 years.

Q 7: What are the terms of payment?

A: TT, Western Union transfer.

Q8, Can you provide us with the documents for customs clearance?

A: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it

Q9: How is your customer service?

A: 24-hour online service. The 48 hour problem was solved (except in special cases).

Q10: How about your after-sales service?

A: 1. Provide customers with online installation and commissioning instructions.

2. Well trained engineers can serve overseas. (non epidemic impact)

Multifunctional 180m Pneumatic Borewell Machine Portable

Multifunctional 180m Pneumatic Borewell Machine Portable

Multifunctional 180m Pneumatic Borewell Machine Portable




Multifunctional 180m Pneumatic Borewell Machine Portable



Multifunctional 180m Pneumatic Borewell Machine Portable
Multifunctional 180m Pneumatic Borewell Machine PortableMultifunctional 180m Pneumatic Borewell Machine PortableMultifunctional 180m Pneumatic Borewell Machine Portable
