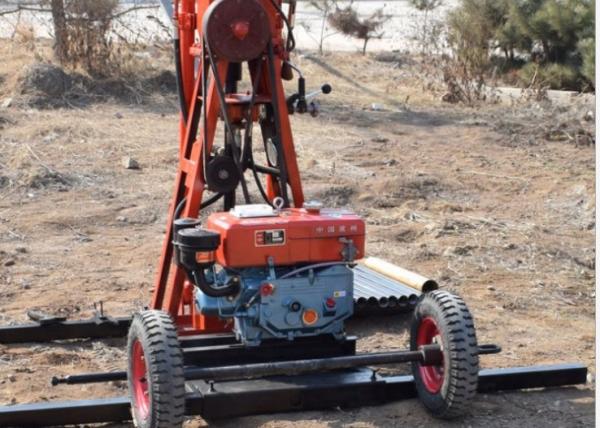

Shitan Machinery Small Hydraulic Drilling rig,OEM ST 50 Meters Depths Exploration Geological Drilling Rig
ST 50 Meters Depths Exploration Geological Drilling Rig Information:
ST 50 is suitable for drilling wells, general exploration, geophysical prospecting, road and construction exploration, and blasting holes.According to the different layers of the bottom selection of alloys, diamonds and composite drill bits for drilling.mine drilling rig 50m drilling
ST 50 Meters Depths Exploration Geological Drilling Rig Parameter:
| Max. drilling depth | 50m |
| Max .opening diameter | φ75-φ108mm |
| End hole diameter | 56-75mm |
| Active drill pipe | 50/1000mm |
| Drill pipe diameter | Φ42mm |
| Drill pipe length | 1000mm |
| Power (diesel engine) | 5.8kw(8P)/2200r/min |
| Size | 1400*600*1600mm |
| Weight | 240kg |
| Spindle |
| Speed | 285-570r/min |
| Torque | 600 N*m |
| Stroke | 1000mm |
| Lifting force | 300KG |
| Pressure | 200KG |
| Drilling Tower (optional) |
| Rated load | 1t |
| Height | 4m |
| Tower leg specifications | 60mm |
| Mud Pump |
| Model | BW-50 |
| Flow | 50L/min |
| Max.pressure | 1.2Mpa |
| Times | 63/min |
| Inlet hose diameter | φ55mm*2.5m |
| Outlet hose diameter | Φ20mm*10m |
ST 50 Geological Drilling Rig Features
1. This type of portable drilling rig has the advantages of compact structure, small volume and light weight. The drilling rig can also be disassembled quickly, which is more convenient to carry up the mountain. It is especially suitable for working in mountainous areas, hills and other complex terrain.
2. Compared with similar products, this model of portable drilling rig is equipped with double oil cylinder hydraulic feeding system, which has fast drilling speed and easy operation.
3. The operation panel of this type of portable drilling rig is equipped with a hole bottom pressure gauge to indicate the pressure, which is convenient to master the situation in the hole, and the operator can make adjustments according to different terrain conditions.
4. This model of portable drilling rig is equipped with 4-gear speed change system. It is convenient for the operator to freely adjust the forward rotation speed according to the geological conditions. In addition, it is also equipped with ultra slow reverse gear, which is convenient for the operator to disassemble the drill pipe and drilling tool.
5. This type of portable drilling rig is equipped with an automatic winch lifting system, which is used in combination with the tower to greatly save labor intensity and improve work efficiency.
6. The drilling rig is equipped with ball clamp clamping mechanism and hexagonal active drill pipe, which can realize rod reversing without shutdown and work,
ST 50 Geological Drilling Rig Usage:
The utility model relates to a small sampling drilling equipment suitable for plains, mountainous areas and inconvenient transportation and energy, which has the advantages of compact structure, small floor area, light weight and convenient movement. It is suitable for geological sampling survey, geological core collection, small grouting holes, blasting holes, etc. in railway, water conservancy and other construction projects and outdoor mountainous areas.
