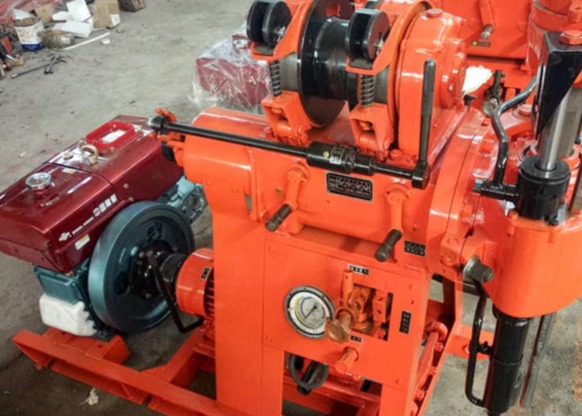

XY-1 Small Portable 100 Meters Depth Exploration Geological Drilling Rig
XY-1 Geological Drilling Rig Introduction
On the basis of ordinary drilling rig, increasing the displacement slide of drilling rig can realize rapid replacement of drilling tools, improve work efficiency and reduce labor intensity.
XY-1 Geological Drilling Rig Parameter:
| Drill Information | Swivel Head |
| Drilling depth | Max.100m | Spindle speed | 1010,790,470,295,140(r/min) |
| Hole diameter | 110mm | Spindle stroke | 450kmm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump |
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | | |
| Rated speed | 1500r/min | | |
| Hoist | Power(diesel) |
| Max. lifting capacity | 15KN | Model(diesel engine | ZS1105 |
| Hoisting drum revolution | 121,76,36(r/min) | Rated power | 12.1KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG |
| SIZE | 1620*970*1560mm |
XY-1 Geological Drilling Rig Advantages
1.keeping bracket is installed on the hoist to form a double wheel support structure, can withstand strong blow.
2.Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.
3.This machine adopts national patent technology taper clutch and is with charactristics of strong transmission torque,easy operation,free maintenance.
4.Using 46x51 active drill rods which is with high rigitidy, strong delivery torque.
XY-1 Geological Drilling Rig Usage
Geological survey exploration, road and high-rise building foundation exploration, various concrete structure inspection holes, river dams, subgrade grouting hole drilling and direct grouting, civil water wells and ground temperature central air conditioning, etc
