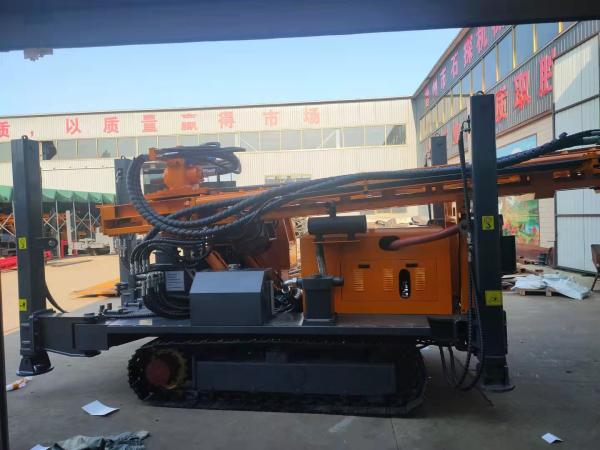

ST 300 Customized Large Water Well Drilling Rig Machine
ST 300 Water Well Drilling Rig Machine Descrption:
ST 300 drilling rig is efficient and multifunctional drilling equipment , it is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. It is especially suitable for water intake in mountainous and rocky strata.
ST 300 Water Well Drilling Rig Machine Main Parameter:
| Technical Parameters Infomation |
| Model Name | ST 300 |
| Drilling Rig Dimension | 5900*2000*2850mm |
| The hole diameter | 140-325mm |
| Drilling depth | 300m |
| One-time advance length | 3m |
| Walking speed | 2.5KM/H |
| Climbing angles | 30 |
| Power | 84KW |
| Using air pressure | 1.7-3.3MPA |
| Air consumption | 17-35cubic meter/min |
| Drill pipe length | 2 meter or 3 meter |
| Drill pipe diameter | 102mm,89mm |
| Rig lifting force | 20T |
| Swing speed | 55-115rpm |
| Swing torque | 6200-8500N.m |
ST 300 Water Well Drilling Rig Machine Advantages:
1. The engine uses turbocharged engine;
2. Traveling device: the traveling motor is equipped with reducer, which has long service life;
3. Hydraulic oil pump; Parallel transmission design, separate oil pumps, sufficient power supply, reasonable distribution, special hydraulic system design, simple maintenance and low cost;
4. Power head unit; The gearbox is integrally cast, and dual motors provide power, with large torque, durability and low maintenance cost;
5. Drilling rig chassis; Excavator chassis, durable, large bearing capacity, wide chain plate, less damage to hard pavement;
6. Lifting force; The design of compound boom has the advantages of small volume, long stroke, double oil cylinder lifting and large lifting tonnage;
7. The lifting boom of each drilling rig is equipped with a stopper
8. Each hydraulic oil pipe is wrapped with a protective jacket to prolong the service life of the oil pipe
ST 300 Water Well Drilling Rig Machine Applications:
It is mainly suitable for drilling wells, agricultural irrigation wells, geothermal air conditioning holes and other wells, especially for water intake projects in mountainous areas and rock strata. The efficiency is more than ten times higher than the traditional rotary drilling rig, and the economic benefits created for users are very considerable. In particular, it solves the construction problems of rotary drilling rig for hard rock layer, gravel and pebble layer, and can work under various geological structures.
When the well bit slips, it can be handled.
After two times of tripping in, the thickness of the muck is determined through the number on the display. After looking at the soft and hardness of the dropped address, if there is a lot of soil and it is hard clay, a drill bucket smaller than the pile diameter is used to solve the problem of slipping. Because there is a large gap between the diameter drill bucket and the hole wall, the dropped soil is under the action of the total amount of drill pipe bucket and pressure, Through the gap between the drill bucket and the hole wall, the small-diameter drill bucket can normally drill when it contacts the solid soil. The large-diameter drill bucket is squeezed into the small hole after two times of running in, so that the large-diameter drill bucket can normally enter the small hole
