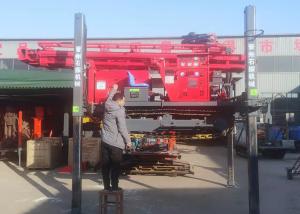

180m Depth Rock Drilling Machine / Air DTH Water Well Bore Hole Drilling Rig
ST 180 Meters OEM Customized Pneumatic Borewell Machine Information

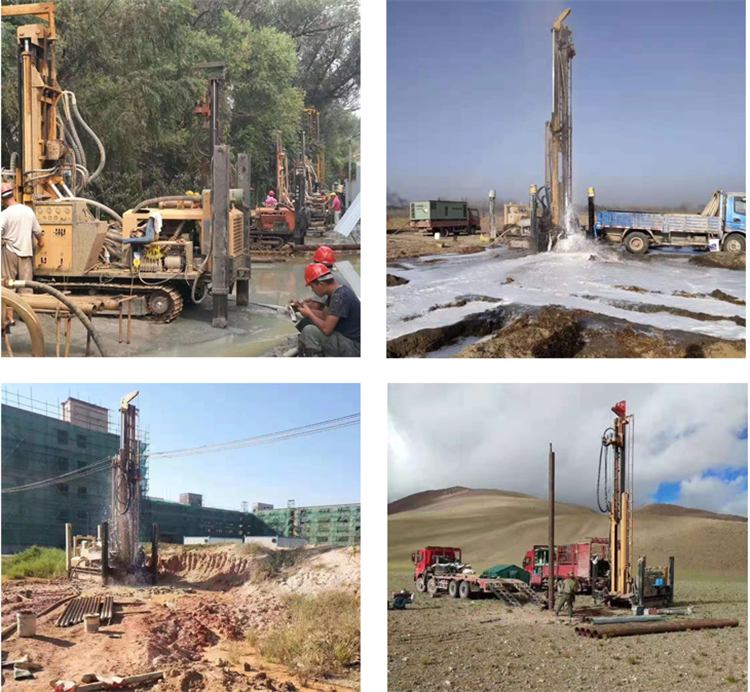

This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields. They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.
ST 180 Pneumatic Borewell Machine Techical Data
Product Name | ST 180 drilling rig |
Drilling hole diameter | 140-254mm |
Drilling depth | 180m |
One-time advance length | 3.3m |
Walking speed | 2.5km/h |
| Climbing angles (Max.) | 30 |
Equipped capacitor | 55kw |
Using air pressure | 1.7-2.5mpa |
Air consumption | 17-31m³/min |
Drill pipe length | 1.5m, 2.0m, 3.0m |
Drill pipe diameter | 76mm, 89mm |
Rig lifting force | 12t |
Swing speed | 45-65rpm |
Swing torque | 3200-4600(N.m) |
Dimension | 3800*1500*2200mm |
Weight | 4500kg |
ST180 Pneumatic Borewell Machine Fetures
1.series deep(water) well-drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
2.Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
3.The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
ST180 Pneumatic Borewell Machine FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional drilling rig manufacturer.
Q: What are your main products, and used for?
A: Our products include core barrel, casing, drill rod, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling.
Q: If the tool joint the buckle, the screw is not how to do?
A: You can tap and screw, this tool joint is not easy to take over tripping in use.
Q: How about the delivery terms?
A: 1.Payment: T/T,30% deposit advance and the rest before delivery
