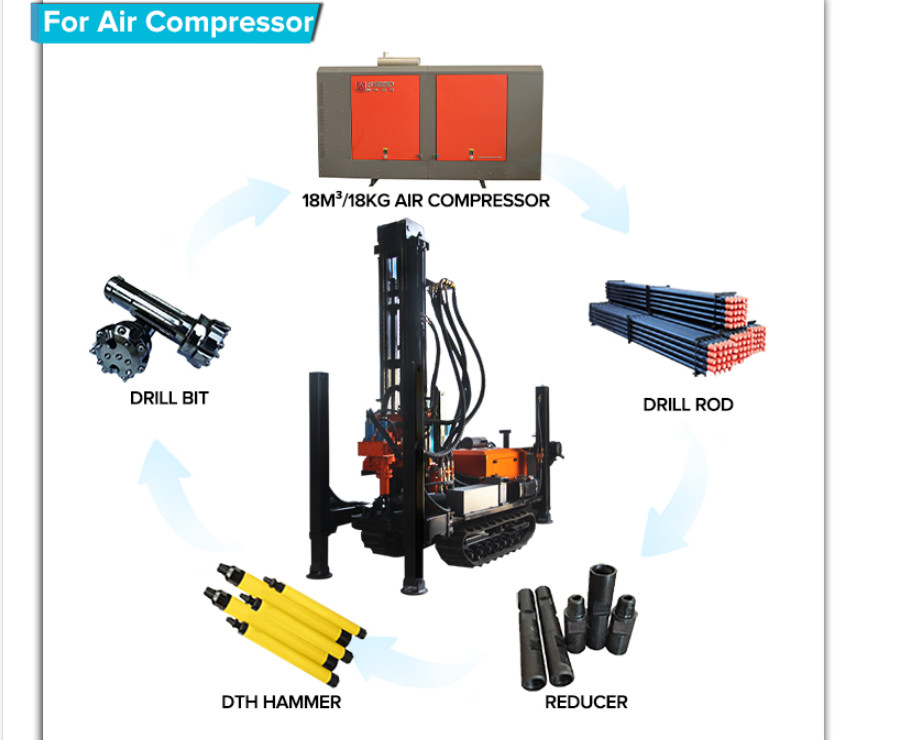

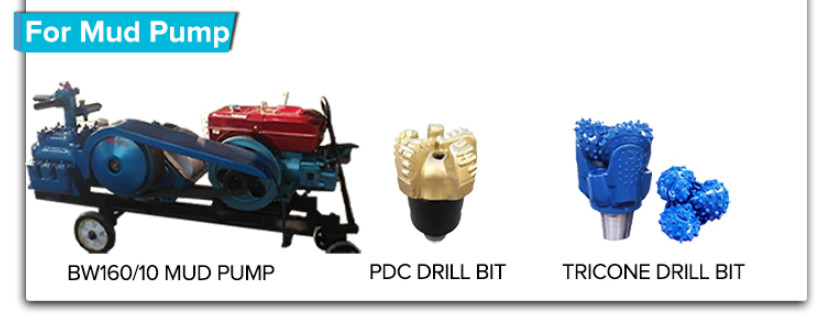

ST180 It is widely used for water well drilling, geothermal air-conditioning project and other boreholes, especially applicable to mountain area and rock formation water engineering.Much higher efficient than the traditional mud rotary drill rigs, creating the considerable economic benefit for users. Especially solve problems to drill hard rocks that the traditional rotary drilling rig meet and it can work with both air compressor and mud pump
| Model | ST180 |
| Drilling hole diameter | 140-254mm |
| Drilling depth | 180m |
| One-time advance length | 3.3m |
| Walking speed | 2.5km/h |
| Climbing angles (Max.) | 30 |
| Equipped capacitor | 55kw |
| Using air pressure | 1.7-2.5mpa |
| Air consumption | 17-31m³/min |
| Drill pipe length | 1.5m, 2.0m, 3.0m |
| Drill pipe diameter | 76mm, 89mm |
| Rig lifting force | 12t |
| Swing speed | 45-65rpm |
| Swing torque | 3200-4600(N.m) |
| Dimension | 3800*1500*2200mm |
| Weight | 4500kg |

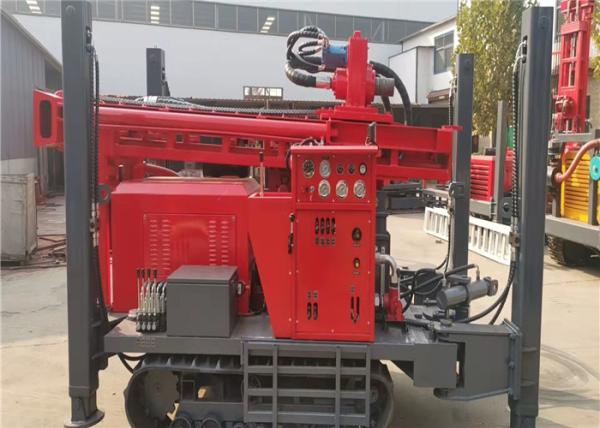

Advantage and features of ST180 water well drilling equipment
1. Guangxi Yuchai diesel engine( cummins engine for option), strong power;
2. The patented design of the composite boom, double cylinder lift, long trip, high tonnage
3. Each rig is equipped with stoppers to raise the big arm to protect the safety of the cylinder.
4. Rig chassis: professional excavator chassis, durable, large bearing capacity, chain width, hard road damage;
5. Parallel transmission design, separate oil pump, sufficient power supply, reasonable distribution, unique design of hydraulic system
6. The traveling motor is equipped with a gear box, which is durable and has a long service life.
7. Dustfall device: Effectively reduce dust pollution damage, aiming at pit and tunnel construction
8. Fast distribution valve: speed three gear up to 130 rpm, basic dual-use water vapor function
Drilling rig characteristics
Full hydraulic water well drilling rig adopts full hydraulic transmission and control system, which can realize stepless adjustment of main drilling parameters to adapt to different formation geological conditions; power
Multi pump, motor and oil cylinder system, with full system safety overload protection device, mature hydraulic components, high reliability and easy maintenance. Advanced sealing structure, reliable performance;
The combination of hydraulic lifting pressure cylinder, hydraulic winch, hydraulic rotary table and shackle cylinder is convenient to operate, and the drilling and unloading of drilling tools are time-saving and labor-saving.
