Introduction to drilling rig
Gxy-1 drilling rig is a vertical shaft portable drilling rig produced according to the needs of users. It is suitable for engineering geological exploration, general survey of solid ore deposits, blasting holes and inspection holes of concrete structures.
According to different strata, diamond, cemented carbide, steel sand, screw and other bits can be selected for drilling, and the opening diameter is 150 mm.When the final diameter of the borehole is 75mm, the depth of the borehole can reach 150m.
Drilling rig parameters
| Type | GXY-1 |
| Hole depth | 150m |
| Hole diameter | 110mm |
| Final hole diameter | 75mm |
| Diameter of drill rods | Φ42/50mm |
| Drilling angle | 90°-75° |
| Dimension(L*W*H) | 1640*1030*1440mm |
| Weight(without power unit) | 500KG |
| Rotary head | Direct rotary speed | 142;285;570 r/min |
| Feeding stroke | 450mm |
| Lifting capacity | 25kN |
| Feeding capacity | 15kN |
| Max. Torque | 1200N.m |
| Hoist | Running speed of drum | 55;110;220 r/min |
| Max. lifting capacity, single line | 10KN |
| Diameter of steel wire rope | 9.3mm |
| Capacity of drum | 27m |
| Mud pump(Horizontal Single-acting) | Max. displacement | 77L/min |
| Max. pressure | 1.2Mpa |
| Stroke | 100m |
| Stroke per Minute | 96min |
| Diameter of liner | 80mm |
| Oil pump (YBC-12/80 Gear pump) | Pressure | 8Mpa |
| Displacement | 8ml/r |
| Speed | 1500r/min |
| Power unit | Electric motor Model Y132M-4 | 7.5KW,1440r/min |
| Diesel engine Model S1100 | 10.3KW,2200r/min |
Advantages of GXY-1 Geological Drilling Rig Machine
1. The drilling rig is equipped with oil pressure feeding mechanism and ball clamping structure, which can realize rod reversing without stopping, with high working efficiency, safety and reliability.
2. The drilling rig has high input power, large output torque and strong drilling ability.
3. The rig clutch double disc normally closed friction device, borrowed from the mature structure of Dongfeng-12 walking tractor, is flexible in opening and closing, and convenient in use and adjustment.
4. The transmission of drilling rig adopts the transmission structure of automobile, with forward and reverse rotation, centralized speed change and interactive self-locking.
5. The rotary device of the drilling rig can be unpacked.
6. The drilling rig is compact in structure, small in size, light in weight, and easy to disassemble and assemble. It is suitable for working in hilly or mountainous areas.
Description:
1. Model GXY-1 drilling rig is a kind of spindle rotatory drilling rig. It was developed by Wuxi Mineral Exploration Machinery General Factory, Jiangsu Province. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, water discharge tunnel,it is aso could for explore coal mine.
2. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation.
3. Light in weight, the rig can be disassembled easily, the biggest apparatus is in 200kg. The whole drill is in500kg, it can be moved easily especially in mountain area.
Product Tags:
|
|

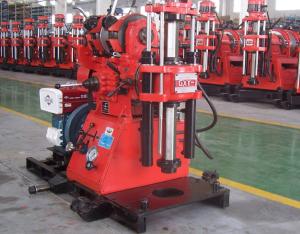

Water 20m Diesel Portable Well Drilling Equipment Images
|
