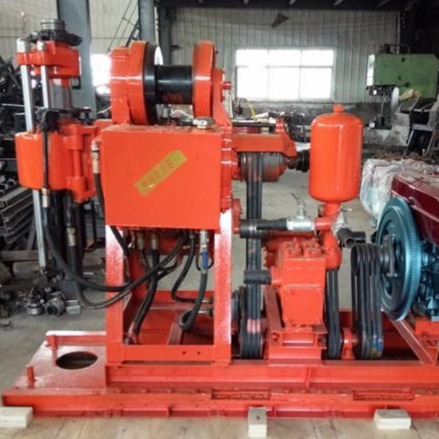

Customized Drilling Equipment GK 200 Soil Testing Drilling Rigs For Exploration
GK 200 Soil Testing Drilling Rigs Product Description:
GK-200 mobile drilling machine is widely used and hydraulic feeding , which has the characteristics of large power, large lifting force (2T) and high transmission torque.
GK 200 Soil Testing Drilling Rigs Product Parameter:
| GK 200 Soil Testing Drilling Rig |
| Drilling diameter(mm) | 75,91,110,130,150,300 |
| Drilling depth (m) | 200,150,100,70,50,30 |
| Drill pipe diameter (mm) | 42,50 |
| Drilling angle(°) | 90~75 |
| Equipment size(L * B * H) | 1730 * 860 * 1360 (mm) |
| Rig weight (except engine) | 700 |
| Gyrator |
| Spindle speed (four gear) (r/min) | 115,230,505,1010 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Spindle maximum output torque(KN• m) | 1.5 |
| Winch assembly |
| Winch maximum lifting force (single rope) | 20 |
| Reel speed (r/min) | 20,39,85,170 |
| Reel circumferential speed(m/s) | 0.172,0.345,0.738,1.476 |
| Reel diameter(mm) | 140 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 40 |
| Brake diameter(mm) | 278 |
| Brake band width (mm) | 50 |
GK 200 Soil Testing Drilling Rigs Applications
1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.
1.2 Geological core drilling, physical prospecting.
1.3 Small grout Confucius, drill hole drilling.
1.4 Small well drilling.
GK 200 Soil Testing Drilling Rigs Service
Warranty: 2-3 years.
After service: Life-time.
• During the warranty period:
Due to non-human factors, we will provide free spare parts and technical guidance.
• Beyond the warranty period:
We charge the cost of spare parts, but we provide technical guidance and other after-sale service for free.
Whole-hearted service for pre-sales and after-sales everyday!
