Brand Name : JINZHOU SHITAN
Model Number : XY-1A
Certification : ISO9001
Place of Origin : China
MOQ : 1 set
Price : Negotiation
Payment Terms : T/T, Western Union
Supply Ability : 10000 sets per year
Delivery Time : 7-10 days

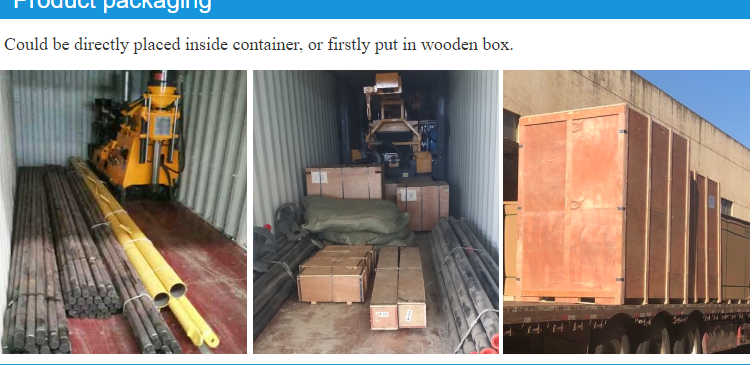

Packaging Details : Wooden Box Standard Export Package
Product Name : 150 Meters Depth 380V XY-1A Soil Testing Drilling Rig Machine Equipment
Type : Soil Testing
Power Type : Diesel
Usage : Water Well,Soil Testing ,Borewell
Voltage : 380V
Power(W) : 16.2kw
Dimension(L*W*H) : 1730*860*1360mm
Weight : 585kg
Drilling Depth : 150 m
Drilling Diameter : 150 mm
Engine : Diesel Power
Spindle Speed : 30-1050r/min
Shitan OEM Drilling Rig ,Drilling Equipment OEM Drilling Rig,150 Meters Depth 380V XY-1A Portable Water Well Drilling Rig

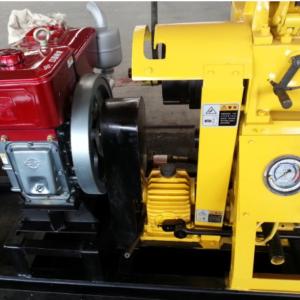

XY-1A Portable Water Well Drilling Rig Description
The rig structure is simple to disassemble and easy to operate.Geological survey exploration, road and high-rise building foundation exploration, various concrete structure inspection holes, river dykes, roadbed grouting hole drilling and direct grouting, civil water wells and ground temperature central air conditioning, etc.
XY-1A Portable Water Well Drilling Rig Product Parameter
Main Technical Data | |
Drilling depth | 150m |
Final hole dia. | 75mm |
Drill rod dia. | 42mm |
Initial hole dia. | 170mm |
Dimensions(L×W×H) | 1640×1030×1440 (mm) |
Angle range | 90°-75° |
Weight(without power unit) | 500kg |
Swivel Head | |
Spindle speed(3-speed) | 142/285/570 r/min |
Spindle stroke | 450mm |
Spindle pull-down max | 14.7KN |
Spindle lifting capacity max | 24.5KN |
Mud Pump Details | |
Model | Horizontal reciprocating single-acting piston pump |
Displacement | 170L/mim |
Downward displacement speed of idling vertical spindle | 0.067m/s |
Power Details | |
Diesel engine | S1100N |
Speed | 2200r/min |
Power | 10.53kw |
Electric motor | Y131M-4-B3 |
Speed | 1500 r/min |
Power | 7.5KW |
XY-1A Portable Water Well Drilling Rig Shining Ponits:

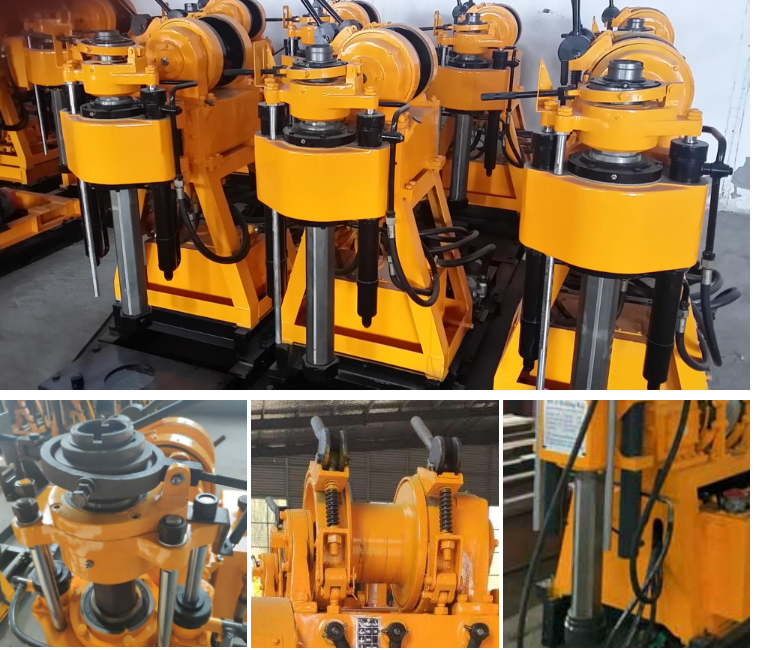

The drilling rig adopts a ball card clamping mechanism instead of a chuck, which can be operated without downtime, which is convenient to operate, safe and reliable. The structure is compact. The drilling rig, water pump and diesel engine are all installed on the same base, occupying a small airport area and reducing economic costs. Light weight, strong decomposability, easy to move. Suitable for work in plains or hilly areas. Equipped with trailer structure or loaded on the track chassis with strong maneuverability.
What can we do for you?
1. Price: The price is negotiable.
2. MOQ: If the drilling rigs, the MOQ is 1 set; If the drilling tools ( DTH hammers & bits ) , the MOQ is 10 pcs;
3. OEM and ODM: Welcome, you can send your own design of product and LOGO to our company.
4. warranty: We are very confident in our products, we pack them very well, and we can sent you a detailed warranty rules.
5.Payment or other question: call me or message me directly.
![]() |
