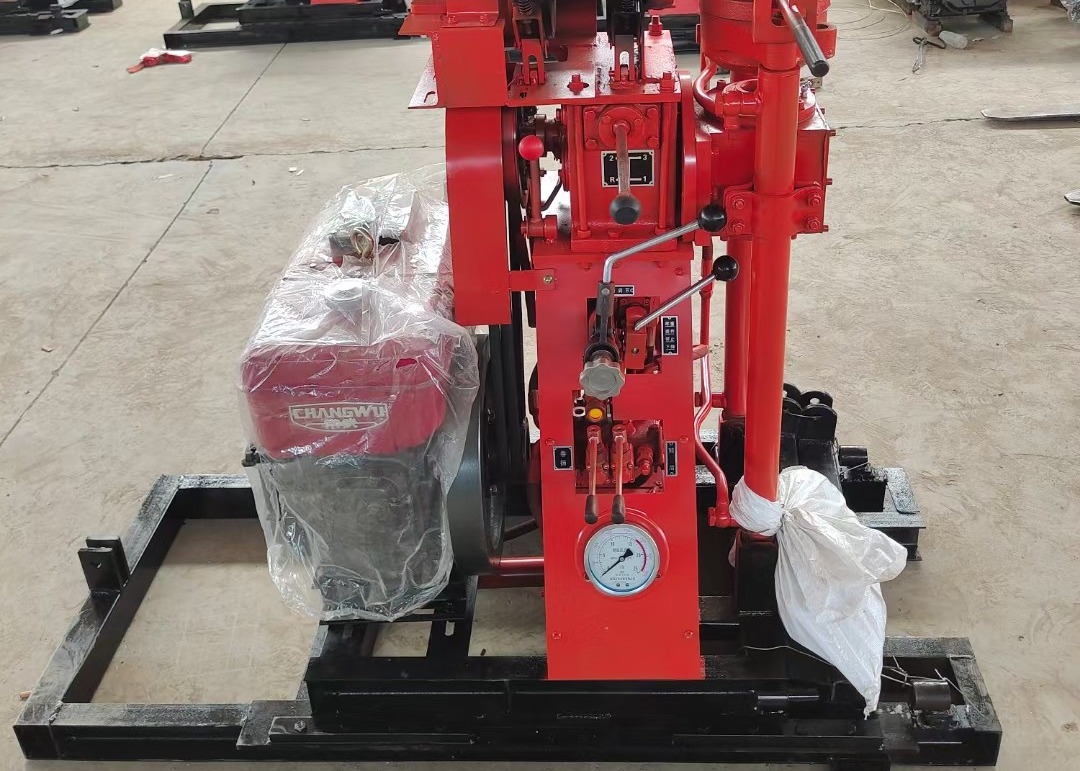

Small Portable Diamond Core Drilling Rig 50m Soil Drilling Machine
ST 50 Soil Testing Drilling Rig Product Information:
ST50 drilling rig is a high, medium and low speed drilling rig with oil pressure feed. Compared with other similar products, it has the advantages of light weight, simple structure, fast drilling speed and large diameter of core samples. It is a commonly used portable hydraulic drill at present. It is especially suitable for coring operations in special difficult terrain such as mountains, hills and rivers, and for engineering geological survey of buildings such as railways, hydropower, transportation, bridges and dam foundations; Geological core drilling and physical survey; Drilling of small grouting holes and blasting holes; Small well drilling.
ST 50 Soil Testing Drilling Rig Product Parameter:
| Max. drilling depth | 50m |
| Max .opening diameter | φ75-φ108mm |
| End hole diameter | 56-75mm |
| Active drill pipe | 50/1000mm |
| Drill pipe diameter | Φ42mm |
| Drill pipe length | 1000mm |
| Power (diesel engine) | 5.8kw(8P)/2200r/min |
| Size | 1400*600*1600mm |
| Weight | 240kg |
| Spindle |
| Speed | 285-570r/min |
| Torque | 600 N*m |
| Stroke | 1000mm |
| Lifting force | 300KG |
| Pressure | 200KG |
| Drilling Tower (optional) |
| Rated load | 1t |
| Height | 4m |
| Tower leg specifications | 60mm |
| Mud Pump |
| Model | BW-50 |
| Flow | 50L/min |
| Max.pressure | 1.2Mpa |
| Times | 63/min |
| Inlet hose diameter | φ55mm*2.5m |
| Outlet hose diameter | Φ20mm*10m |
Features of 50 hydraulic portable drilling rig
1. It has oil pressure automatic feeding mechanism and high drilling efficiency.
2. With ball clamp clamping mechanism and hexagonal active drill pipe, the rod can be inverted without shutdown.
3. The drilling rig is equipped with hydraulic winch, which can be used together with the drilling tower to facilitate drilling lifting.
4. Equipped with 4-speed transmission system. It is convenient for the operator to freely adjust the forward rotation speed according to the geological conditions. In addition, it is also equipped with slow reverse gear to facilitate the operator to disassemble the drill pipe and drilling tool.
5. The handle is centralized, easy to operate, safe and feasible.
6. It is equipped with a hole bottom pressure gauge to indicate the pressure, which is convenient to master the situation in the hole.
7. The drilling rig is equipped with a shift slide, which can quickly replace the drilling tool, saving time and labor.
8. Compact structure, small volume, light weight and small floor area.
9. It has strong decomposition ability and is easy to move. It is suitable for working in hilly, mountainous and other complex terrain.
