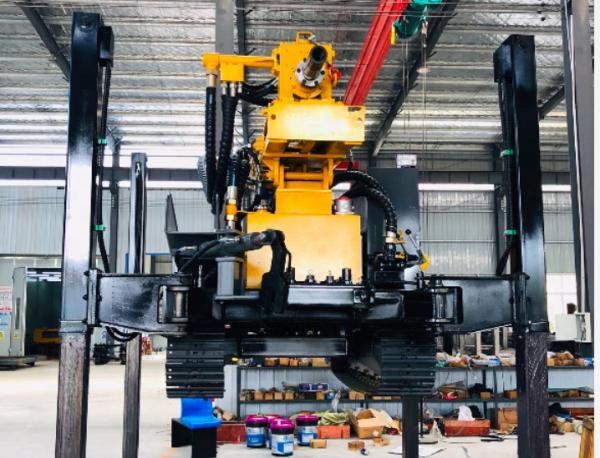

350M Steel Crawler Mounted Rotary Portable Water Well Drilling Rig Machine
Crawler Mounted Drill Rig Brief Introduction

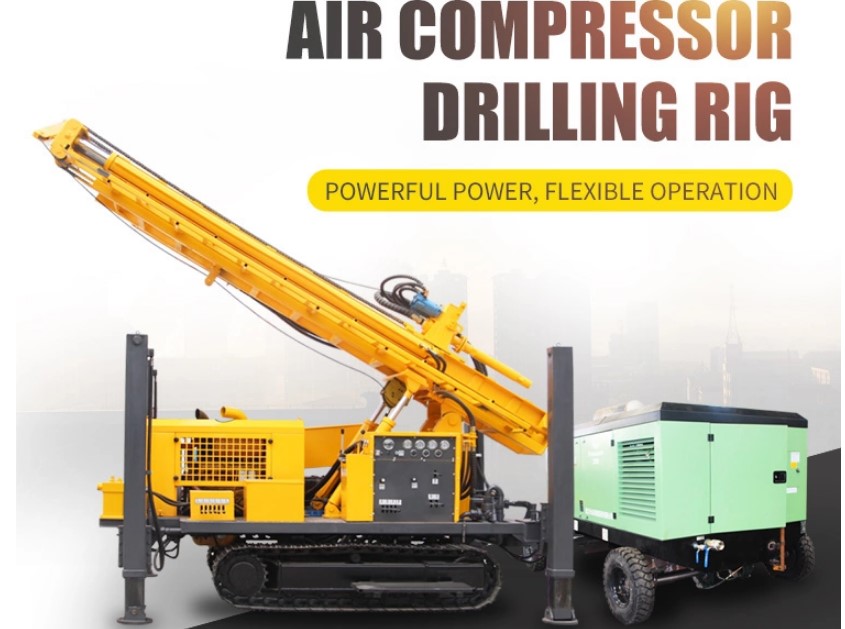

Pneumatic Water Water Well Drilling Rig can create drilling jobs in different strata, borehole diameter can up to 130-400mm. The rig with hydraulic technology, suporting gh torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage airfilter, air compressor intake design, prolong the service life of diesel engine.
Special pump set design is convenient for maintenance and reduce the cost of maintenance. Centralized control of the hydraulic controltable, convenient operation.
Crawler Mounted Drill Rig Main Specifications
| Drilling depth3 | 350m |
| Drilling diameter | Φ140-Φ350mm |
| Working air pressure | 1.7-3.5MPa |
| Air consumption | 17-30m3/min |
| Drilling pipe diameter | Φ89, Φ102mm, Φ108mm |
| Length of drill pipe | 1.5m, 2.0m, 3.0m,6.0m |
| One push length | 6.6m |
| Tramming speed | 2.5km/h |
| Climbing ability (Max.) | 30° |
| Ground clearance (Min.) | 250mm |
| Rotation speed | 45-115 rpm |
| Rotation torque | 6500-9000 N.m |
| Power | 92 Kw |
| Weight | 10 |
| Dimension | 5900x2100x2850mm |
Characteristics of water well drilling rig
The Drilling Rig Machine adopts a excavator crawler chassis and has strong off-road performance. The independent module design allows the drill to be mounted on the truck to increase its mobility.
Two speeds of rotating and advancing speed can meet the different needs of soil and rock drilling Combined positioner, the positioning disc can be adjusted and replaced according to different types of drill pipe and impactor, so as toensure the accuracy and reliability of the posoning and centering.

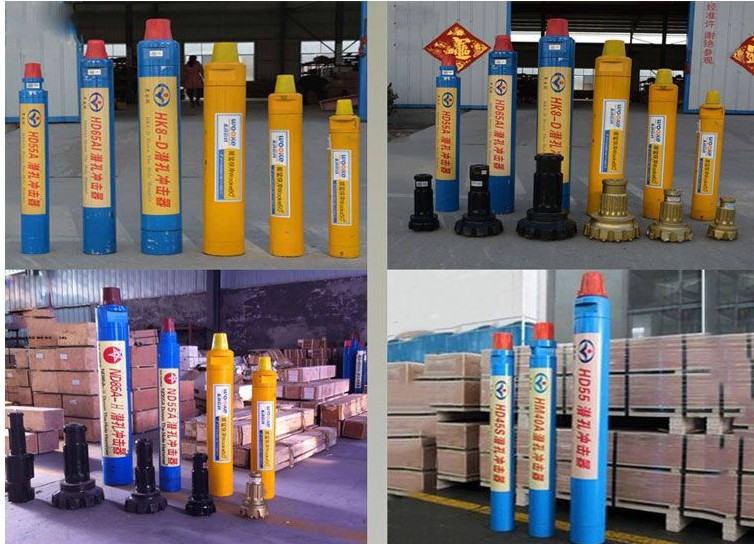

The hoisting mechanism is convenient for hoisting of drill pipe and impactor, so as to reduce the labor intensity.
Main Technical Advantages of ST350 as follow
The drilling depth for one time can reach 6.6 meters, which save the time to load the drill pipes and also save the human resources; Adopting double cylinder to lifting, lifting force can reach 24 tons; The four strong legs can lift 1.7meters, and the real ground clearance can reach 1.45 meters, which easy to stable the machine and convenient for the loading during the transportation; KW300 water well drill rig equipped with a multi-function generator that can be used to generate electricity or to drive other tools, also equipped high-pressure pumps for a variety of applications
