300m Depth Tractor Mounted Water Well Drilling Rig Machine To Dig Deep Wells For Sale
1.Water Well Drilling Rig Machine Overview of ST-300
Crawler Mounted Well Drilling Rig is compact, suitable for narrow drilling condition, DTH Crawler Mounted Well Drilling Rig is top driven and multi-functional, which is featured of high technology, easy operation, high efficiency and reliability. They are widely applied in well drilling, geotechnical drilling, geothermal drilling, mining exploration, offshore drilling, etc. This DTH crawler drilling rig could work in any different conditions through pneumatic drill driven by air compressor, it has high drilling speed even in rocks which hardness is with f=4-20.
2.ST-350 Water Well Drilling Rig Machine Parameter:
| ST300 trailer mounted water well drilling rig |
| The weight | 8T |
| Drilling diameter | 105-300mm |
| Drilling depth | 300m |
| One-time advance length | 4m |
| Walking speed | 2.5km/h |
| Climbing angles | Max.30° |
| Equipped capacitor | 65-70KW |
| Using air pressure | 1.7-3.0Mpa |
| Air consumption | 17-30m³/min |
| Drill pipe diameter | φ50mmΦ76 mm φ89mm |
| Drill pipe length | 1.5m 2.0m 3.0m |
| Rig lifting force | 12T |
| Swing speed | 45-70rpm |
| Swing torque | 3500-5900N.m |
| Dimension | 4m×1.9m×2.3m |
A: Application of water well drilling rig machine
It can be used to drill water well, agricultural irrigation well, geothermal well and other type well holes. And it is special suitable for mountain area and rock stratum water sourcing project.
B: Features of water well drilling rig machine
It can work on different formations, well drilling diameter up to 500mm.
It is belong to lightweight, efficient, versatile drilling hole equipment;
It is equipped new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines;
Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate;
After sales service:
1.We can provide all-round technical guidance ff there is any problem about our machine;
2.7*24 hours multi-language professional after-sales service group
3.Construction solutions will be provided for different geological conditions.
4.All the accessories of that kind of machine can be provided for a long time.
Hydraulc Crawler Wheel Drilling Machine Rig 200m Borehole Multifunction Water Well
Product Tags:
|
|

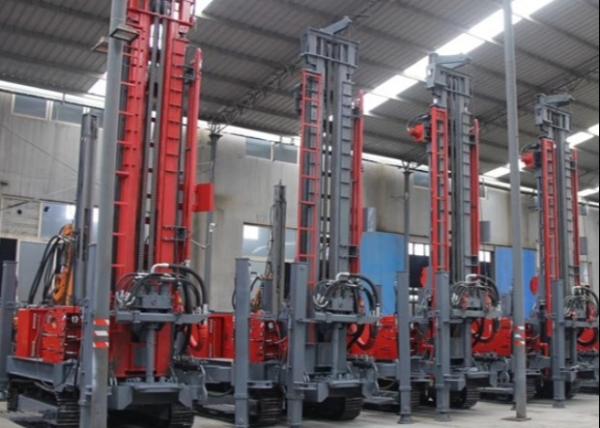

300m Depth OEM Tractor Mounted Water Well Drilling Rig Images
|
