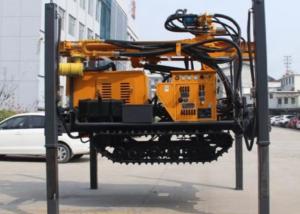

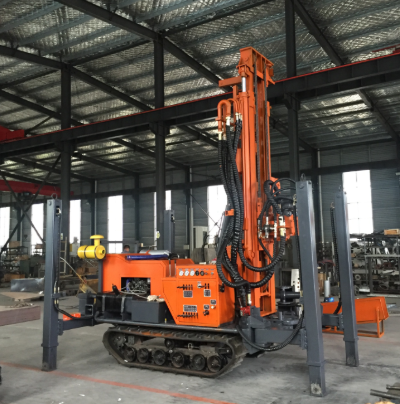

Rock Geological Core Drill Rig Borewell Water Well Drilling Machine

Brand Name : ST

Model Number : ST-180

Certification : ISO 9001

Place of Origin : hebei china

MOQ : 1 set

Payment Terms : Western Union, TT

Supply Ability : 2000sets/month

Delivery Time : 5days

Packaging Details : Customized

Usage : Pneumatic Borewell Machine

Weight : 4.5T

Drilling depth : 180 meters

Dimension(L*W*H) : 3800*1500*2200mm

Drilling hole diameter : 140-254mm

One-time advance length : 3m

Walking speed : 2.5km/h

Climbing angles (Max.) : 30

Equipped capacitor : 55KW

Drill pipe diameter : 76/89mm

Application : Water well drilling rig

Colors : red ,yelllow

Contact Now

Manufacturer Price Durable Drill Rig Rock Geological Core Water Well Drilling Machine

180m Pneumatic Borewell Machine

It can be used for drilling on different formations with a maximum diameter of up to 350 mm. The rig adopts new hydraulic technology, which is equipped with high-torque hydraulic motor rotation and large-diameter hydraulic cylinder propulsion.
The independent module design allows the rig to be easily mounted on the truck for increased maneuverability. Two-speed swivel and propulsion speeds are available for different piercing needs in soil and rock formations

Pneumatic Borewell Machine Main Parameters

Model	ST180
Drilling hole diameter	140-254mm
Drilling depth	180m
One-time advance length	3.3m
Walking speed	2.5km/h
Climbing angles (Max.)	30
Equipped capacitor	55kw
Using air pressure	1.7-2.5mpa
Air consumption	17-31m³/min
Drill pipe length	1.5m, 2.0m, 3.0m
Drill pipe diameter	76mm, 89mm
Rig lifting force	12t
Swing speed	45-65rpm
Swing torque	3200-4600(N.m)
Dimension	380015002200mm
Weight	4500kg

T180 Pneumatic Borewell Machine information:

Our water well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which borehole drilling machine is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The water well drilling rig machine can work on different formations, well drilling diameter up to 245mm. The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
