Mobile Geologic Investigation 15kw Portable Water Well Drilling Rig

Name: Mobile Geologic Investigation 15kw Portable Water Well Drilling Rig
Brand: Shitan
Price: 1 USD

China Mobile Geologic Investigation 15kw Portable Water Well Drilling Rig wholesale

Brand Name : Shitan

Model Number : 200

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 5-8 work days

Packaging Details : Plastic film and Standard export wooden box

Product name : Portable Water Well Drilling Rig

Drilling Way : Rotary

Geological : soil, rock, hard rock,

Transport Package : in Wooden Case

Chuck : Hydraulic Chuck

Usage : Soil sample

Net weight : 600 KG

Warranty : 1 Year

Drill angle : 90°-75°

Matched power(diesel power) : 15kw/2200r/min

Active drill rod : 53/59*4200mm

Rod diameter : 50,60mm

Contact Now

Portable Mobile Geologic Investigation Mining Water Well Borehole Core Drilling Rig

Portable Water Well Drilling Rig troduce

It has the features of big turning torque and big opening diameter. And it is compact, small in size, light in weight, strong in decomposition and easy to remove . This drilling machine adopts big driven drill pipe and double guide rod to increase stability .This rig can move 350mm back and forth on the base, so it facilitates the removal of the drill pipe.

Portable Water Well Drilling Rig parameters

Drilling depth	200m
Open hole diameter	75-300mm
End hole diameter	75mm
Active drill rod	53/59*4200mm
Rod diameter	50,60mm
Drill angle	90°-75°
Matched power(diesel power)	15kw/2200r/min
Dimension	28009501700mm

Our Services

1.Small order is aceptable.

2.Good service and low price.

3.Fast reply.

4.12 Months quality guarantee.

5.Any third party testing is accepable.

Specially recommendation

This machine gained 3 national practical new type patents invention.

1. To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod,with strong rigidity and big transfer torque .

2. To be provided with cone plate friction clutch,being facile to operate,with big transfer torque.

3. To adopt rolling bearing type hoist,with wide brake band and big lifting capacity.

4. To be equipped with speed reducer and sludge pump,being integrated structure.

5. The entire machine is featured by stong adaptability,high motive power,low cost and broad compatibility.

6. To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of construction efficiency.

7. To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.

Mobile Geologic Investigation 15kw Portable Water Well Drilling Rig

Product Tags:

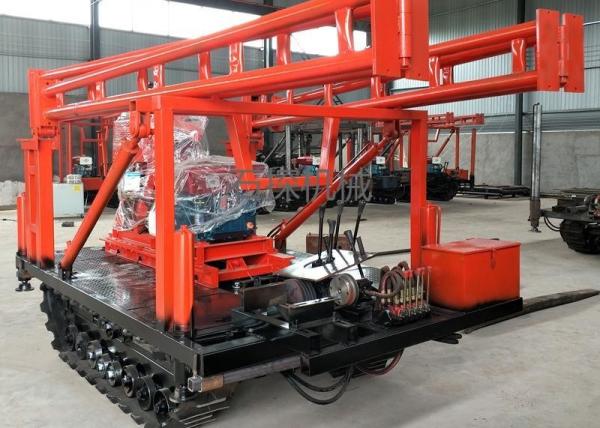

Mobile Geologic Investigation 15kw Portable Water Well Drilling Rig Images
