GY 200 Meters Drilling Rig King Top Quality China Brand Geological Drilling Rig
GY 200 Meters Drilling Rig King Geological Drilling Rig
This is suitable for industrial and civil construction, as well as engineering geological surveys of highways, railways, bridge foundations, dam sites, water conservancy, water wells, prospecting and other engineering geological surveys, shallow oil and gas mining, Ventilation and drainage of mine tunnels, and construction of large-diameter pile holes. Depending on the formation, drills such as diamond, cemented carbide, and auger can be used for drilling. This model has the advantages of compact structure, light weight, small size, and good detachability.
GY 200 Meters Drilling Rig King Geological Drilling Rig parameters
| Drilling depth | 200m |
| Open hole diameter | 75-300mm |
| End hole diameter | 75mm |
| Active drill rod | 53/59*4200mm |
| Rod diameter | 50,60mm |
| Drill angle | 90°-75° |
| Matched power(diesel power) | 15kw/2200r/min |
| Dimension | 2800*950*1700mm |
GY 200 Meters Drilling Rig King Geological Drilling Rig Application
(1) The rig has oil-pressure actuating system to improve drilling efficiency and reduces the workers’ physical labor.
(2) Uses ball joint instead of chunk to back the lever conveniently and safely without stopping machines.
(3) It has a manometer to show the pressure in the hole.
(4) Operated conveniently as the handles are centralized.
(5) It has compact structure, as rigs, pumps and diesel engines are on one pedestal so that save the space.
(6) Suitable to work on the plain and mountainous areas for it is moved easily with lightweight and simple to disassemble.
GY 200 Meters Drilling Rig King Geological Drilling Rig Main Features
1.A more reasonable speed range is selected. There are eight speed levels, centralized speed change, self-locking with each other, large low-speed torque, and a wide range of use. Suitable for both engineering geological survey and diamond core drilling
2.The drilling rig has two speeds of reversing speed, which is convenient for handling faults safely.
3.The rotary chuck adopts two types of manual ball chuck and automatic centering hydraulic chuck for users to choose.
4. Equipped with enough instruments, which is helpful for grasping the situation in the hole, with fewer operating handles, more reasonable layout, flexible and reliable operation.
5. The two-plate normally closed friction clutch is adopted, which is flexible to open and close, and easy to adjust and use.
6.. Equipped with front and rear moving oil cylinders, the gyrator moves 465 mm backwards, which brings a lot of convenience to lifting and lowering the drilling tool.
Product Tags:
|
|

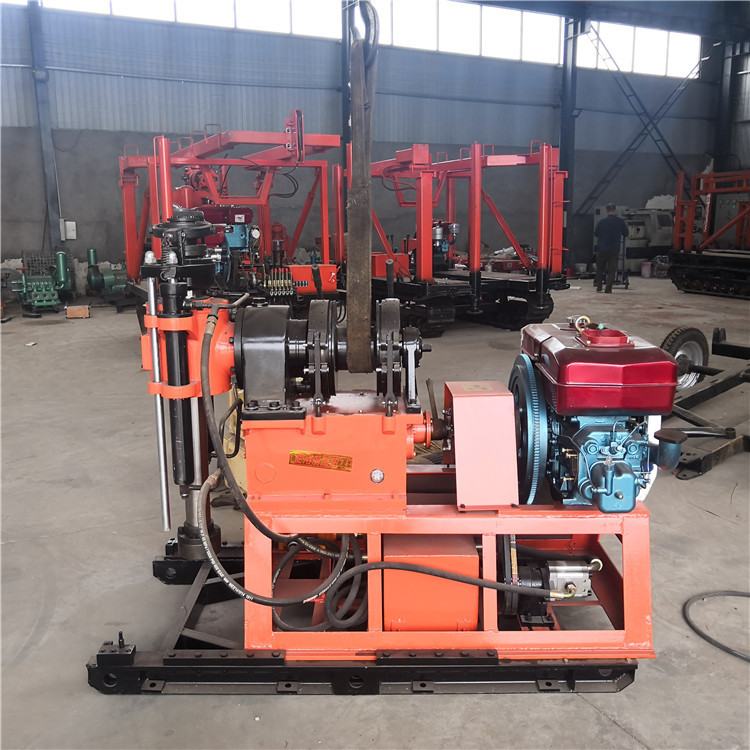

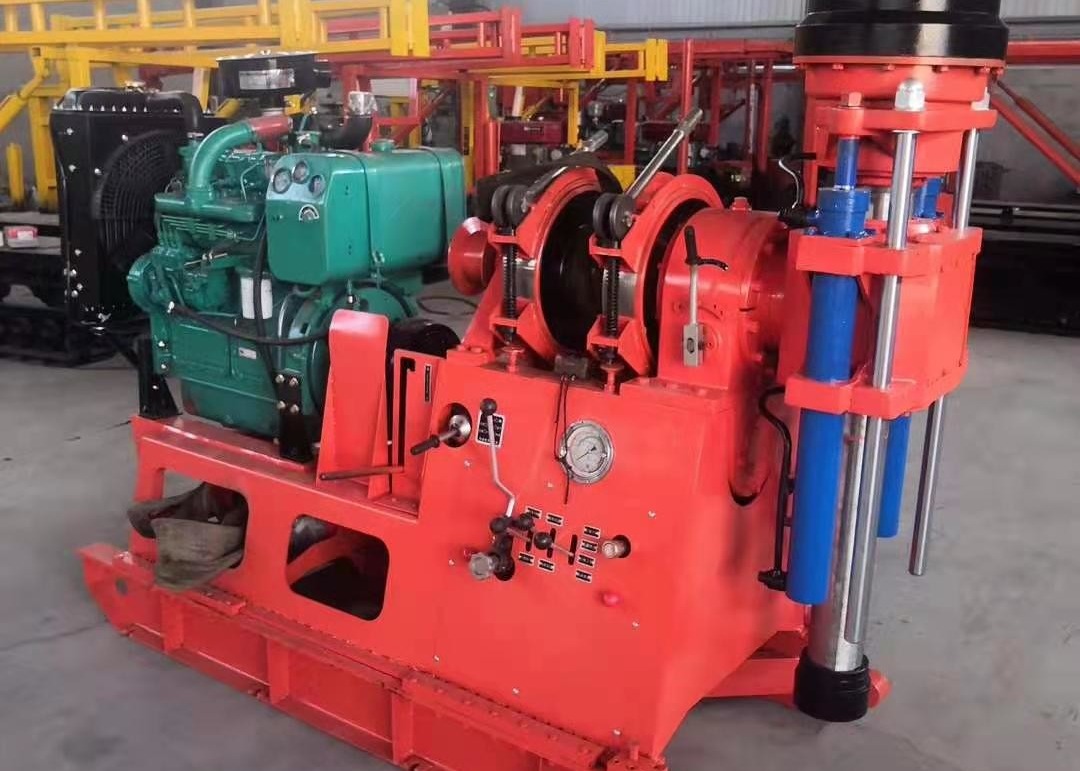

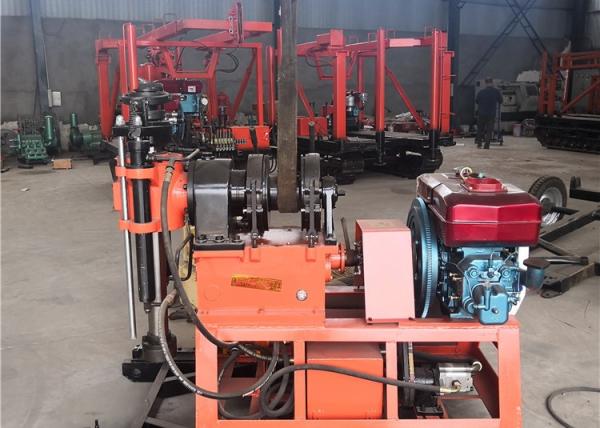

200 Meters Rotary Hydraulic Chuck Geological Drilling Rig Images
|
