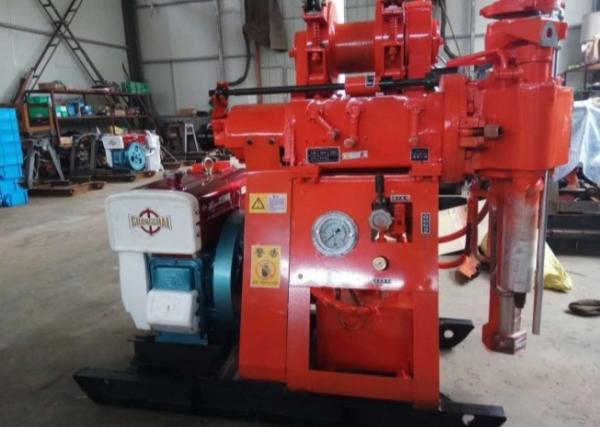

170r/Min Family 180m Portable Water Well Drilling Rig Machine

Brand Name : ST

Model Number : GK180

Place of Origin : hebei

MOQ : 1P

Price : Go into details

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 5-7

Packaging Details : Wooden box

Drilling depth : 180m

Drilling angle : 90°-75°

Dimensions : 2120*875*1480mm

Spindle speed : 71,182,310,790r/min

Power source : diesel engine

Hole diameter : 75mm

Spindle pull-down max : 15KN

Spindle lifting capacity max. : 25KN

name : Water Well Drilling Rig Machine

Hoisting drum revolution : 20,39,85,170r/min

Contact Now

Family Using Portable Water Well Drilling Rigs Machine For Sale

Water Well Drilling Rig Machine Introduction

GK-180 series Water Well Drilling Rig Machine is a kind of widely used portable drill. It is suitable for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservancy, bridges, dam foundation and other buildings . According to different strata, it drills by choosing diamond, composite films and alloy

Water Well Drilling Rig Machine parameters

GK-180 Drilling rig
Drilling depth	180m
Drill rod caliber	42mm
Hole diameter	75mm
Drilling angle	90°-75°
Dimensions	21208751480mm
Weight(without power unit)	750kg
Swivel head
Spindle speed	71,182,310,790r/min
Spindle stroke	450mm
Upward displacement speed of idling vertical spindle	0.05m/s
Downward displacement speed of idling vertical spindle	0.067m/s
Spindle pull-down max.	15KN
Spindle lifting capacity max.	25KN
Spindle max.torque	1.5KN.m
Brake diameter	278mm
Brake belt width	50mm
Hoist
Max. lifting capacity	20KN
Hoisting drum revolution	20,39,85,170r/min
Drum diameter	140mm
Wire rope diameter	9.3mm
Wire rope capability	40m
Oil pump
Model	YBC-20/125
Rated presure	12.5Mpa
displacement	20ml/r
rated speed	800-2500r/min
Water pump
Displacement max.	95(77)L/min
Working pressure max.	1.2Mpa
Rated pressure	0.7Mpa
Liner diameter	80mm
Piston stroke	100mm
Power(diesel engine or motor)
Rated power	16.2KW
Rated speed	2200r/min

GK180 Water Well Drilling Rig Machine main features

* 1,It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.
* 2,It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
* 3, It has hole bottom pressure gauge to be easy to master the situation in the hole.
* 4, It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountain areas.

Drilling Rig Manufacturer DERY Service

1.Professional technical support pre-sale, sale, and after-sale.

2. Your problems can get feedback in 8 hours and solved in 24 hours.

3. The machine can be customized as per your requirements.
