200m 2000N·M Hydraulic Borehole Drilling Machine

Name: 200m 2000NM Hydraulic Borehole Drilling Machine
Brand: JINZHOU SHITAN
Price: 1 USD

China 200m 2000N·M Hydraulic Borehole Drilling Machine wholesale

Brand Name : JINZHOU SHITAN

Model Number : ST-200

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-10 days

Type : Geological Drilling Rig Machine

Power : Hydraulic

Pressure : High Pressure

Usage : Water Well

Application : Water Well Drilling / Core Drilling

Power(W) : 15KW

Voltage : 380V

Contact Now

200m Depth Hydraulic Geological Drilling Rig Machine for Geothermal Drilling

200m Depth Hydraulic Geological Hydraulic Borehole Drilling Machine

Application:

Our drill rigs are used for well drilling, geothermal drilling and geological exploration drilling. We can also provide you with solutions for almost all types of piling mode. The low weight and compact design enable you to reduce your investment costs to a minimum. Our technology is innovative, allowing you to achieve excellent performance with minimal effort.

We mainly offer 6 types of drilling rigs to suit the required drill depth and soil characteristics.

Main Parameter:

1, drilling ability
Drilling diameter (mm)		300		76			46
Depth of drilling (m)		60		225			290
Drill pipe diameter (mm)		50					42
Vertical axis inclination range		0°~360°
2,Turntable
Rotating speed(r/min)	Forward	900 475 388 205 157 68
	Reversal	256 85
Maximum torque		2000N·m
Rack movement schedule		400mm
Vertical axis to process		450mm
Cylinder maximum feed force		29KN
The maximum jacking force of the cylinder		39KN
3, lifts
Reel diameter			135mm
Wire rope diameter			12.5mm
Reel capacity			30m
Single rope lifting force			30KN
Single rope maximum lifting speed			0.27 0.64 0.83 1.58 1.64
(Second floor)(m/s)
4,Oil pump
Model number			CBF-F420-ALPL gear oil pump
Displacement			20mL/r (Flow 33L/min)
Rated speed			2500r/min
preset pressure			20MPa
greatest pressure			25MPa
5, power machine			model	Power		Rotating speed		weight
(1) Motor			Y160L-4	15KW		1460r/min		144kg
(2) Diesel Engine			Changchai ZS1110	14.7KW		2200r/min		180kg
6, rack
Type: Slide type (with sliding base)
Drill stroke					400mm
Let the opening distance					270mm
7.Rig Dimensions (length × width × height)					1820×980×1400mm
8,rig weight (including diesel engine)					850kg

200m 2000N·M Hydraulic Borehole Drilling Machine

Product Tags:

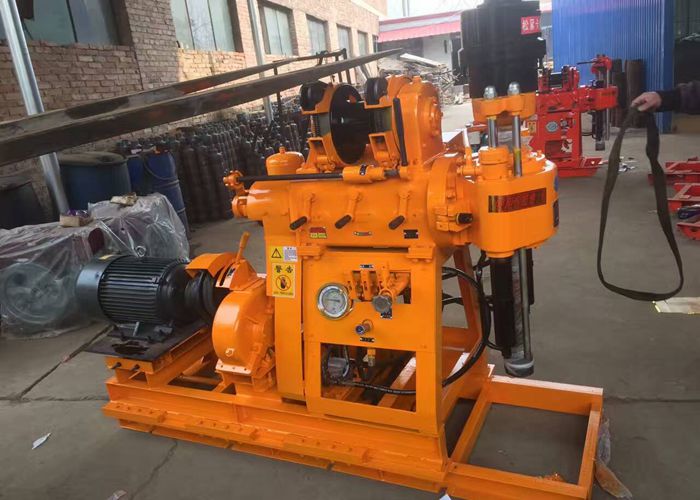

200m 2000N·M Hydraulic Borehole Drilling Machine Images
