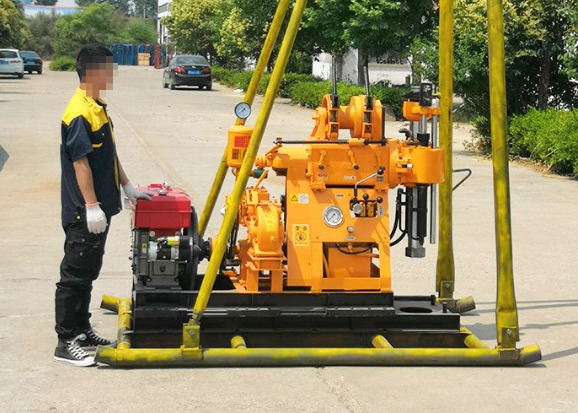

Hydraulic Geological Drilling Rig Machine for Water Well Drilling
Product Description:
Keeping bracket is installed on the hoist to form a double wheel support structure, can withstand strong blow.
Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.
This machine adopts national patent technology taper clutch, with characteristics of strong transmission torque, easy to operation, free to maintenance.
53x59 driving lever is adopted, high rigidity, strong delivery torque.
Product Parameter:
| 1.Unity Machine Parameter |
| Drilling Depth(m) | 150~200m |
| Hole Diameter(mm) | 75~200mm |
| Drill Rod Diameter | 50 |
| Drilling Angle | 90~75 |
| Drill Weight (No include power) | 910kg |
| Overall Dimession | 2750*950*1600mm |
| 2.Spindle |
| Spindle Speed | 64, 128, 287, 557r/min |
| Spindle Stroke | 450mm |
| 3.Hoist |
| Max. Single Line Hoisting Capacity | 2000kg |
| Reel Lifting Speed | 75, 151rm/s |
| Tightrope Diameter | 13mm |
| Tightrope Cubic Measure | 35mm |
| Hug Follgate Belt Width | 70mm |
| Distance Between Drill and Hole | 400mm |
Advantages of drilling rig
1: Automatic feed structure
Improve drilling efficiency
Reduce labor intensity of workers
2: Reverse the rod without stopping the machine
easy operation
Stable and reliable
3: Hoist with cage
Structure of star wheel supported on both sides of stroke
Can withstand strong impact
4: Four sets of vertical shaft box bearings
Make sure the rotator has enough rigidity
To deal with the complex geological conditions such as gravel layer and pebble layer
