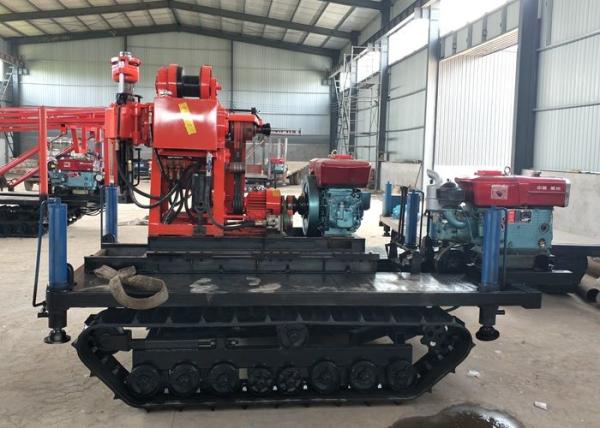

ST-200 Prospecting Geological Drilling Rig Machine for Sale with Good Price
Product Parameter:
1. With hydraulic automatic feed mechanism, improve drilling efficiency, reduce workers' physical strength.
2. With the ball instead of the card holder chuck mechanism, and with a clamping positioning mechanism can be implemented non-stop lever down.
3. With a bottom hole pressure gauge indicating the pressure, easy to grasp hole situation.
4. Handle centralized, easy to operate.
5. Compact, drilling rigs and power machine are mounted on the same base, the area occupied by a small space.
6. Light weight, decomposition and strong, easy to move, suitable for plains or mountain areas.
7. Equipped with a safety shield, highlighting the equipment user-friendly design features.
8. The lower end of the vertical feed cylinders with fixed junction box nut, improve rig reliability.
Product Parameter:
| main parameters |
| 1.Technical parameters | drill pipe diameter | 42mm |
| The hole inclination angle | 90～75° |
| Rig dimensions(L×B×H) | 1433×697×1273mm |
| drill weight | 500kg (mobile 620kg, mobile pump 720kg) |
| Rated drilling depth | 200m(The depth should not exceed 220m) |
| Rated hole diameter | 200mm(The maximum diameter of opening hole 300mm) |
| Drill and drill diameter should be according to the formation conditions. |
| 2. Gyrator | The vertical speed (four steps) | 118,236,505,1010.r/ram |
| Max output torque | 1500N. m |
| 3. Windlass | Since the maximum weight (a single rope) | 17KN |
| 4.power machine | Engine type | S1115 |
Rig Application:
1. In the general survey and exploration of mineral deposits, especially those of nonferrous metals and rare metals, tunnel drilling is used to trace deposits, to explore geological structures, to delineate ore bodies, to sample and verify.
2. In mine excavation, tunnel drilling technology is commonly used to drill underground observation holes, ventilation holes, drainage holes, gas drainage holes, grouting holes, blasting holes, anchor holes and pilot holes for digging tunnels.
3. In other geotechnical engineering construction fields, the equipment and technology of tunnel drilling can be used for slope reinforcement of dam foundation, treatment of geological disasters, support of deep foundation pit, and underground engineering construction of industrial, commercial, traffic, military and other aspects.
4. It is used for the construction of building foundation, workshop foundation, high-speed railway foundation, highway foundation and other rock foundation foundation.
