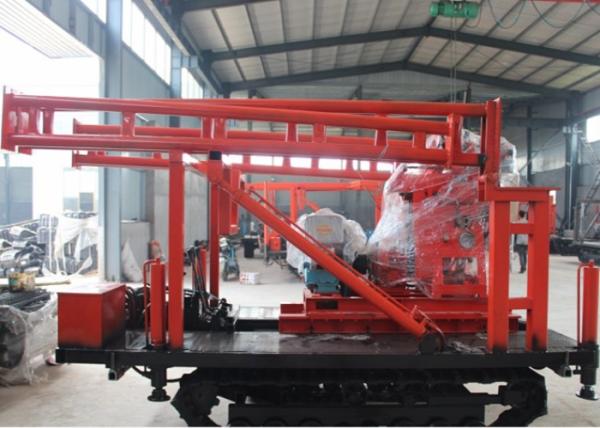

Hot Sale Geological Drilling Rig Machine for Multi-Usage Engineering Drilling
Product Description:
ST-300 fully hydraulic drilling rig is multifunctional, mainly applied in constuction, highway, bridge, water conservancy, hydroelectricity, mine, tunnel and so on. It is widely used in engineering hole construction, such as foundation investigation hole, deep foundation pile anchor hole, road or dam foundation reinforcement holes, drain hole, open pit blast holes, water wells and foundation piles.
Product Parameter:
| Drilling capacity | drilling depth (meters) | 0~300 m | |
| hole diameter (millimeters) | Φ60~Φ250 mm | |
| Drill rod spec (millimeters) | Φ42×2000 mm/Φ50×2000 mm | |
| Power Machine | Type | Diesel engine | |
| Rated power (rpm) | 55 kw (2400 rpm) | |
| Top head | Torque (N*m) | 0~2000 N*m | |
| Speed (forward, reversion) | 0~500 rpm | |
| stroke (millimeters) | 2800 mm | |
| Maximum pulling force | 40 KN | |
| Maximum feeding force | 24 KN | |
| Mast slide stroke (millimeters) | 850 mm | |
| Gradeability (degrees) | 30° | |
| Walking speed | 2 Km/h | |
| Mast landing angle | from horizontal to vertical state | |
| Main arm lifting angle | 0-90° | |
| Horizontal hole height | 1.75-2.4m | |
| System Pressure | 18Mpa | |
| Operation air pressure | 1.05-2.75Mpa | |
| Compressed-air consumption | 16-38 M3/Min | |
| Reture oil filter fineness | 10 u m | |
| Mud pump | BW-160/10 | Displacement 160 L/min Pressure 10 Mpa |
| Weight and Dimension | Weight (tons) | 4000kgs |
| Dimension (millimeters) | 4800×1800×2200 mm |
Advantages of drilling rigs
1.With hydraulic automatic feeding device,elevated drilling efficiency.
2.Large torque and drilling diameter.
3.With a spherical jaw holding mechanism and the rod replacement without breakdown,high efficiency.
4.Compact structure,small volume,lightweight,high detachability,easy transportation and suitable for the operations in plains or mountain areas.
Applicable of drilling rig
1.Widely used in coal mine, ore mine, energy industry and water well drilling.
2.General for investigation, geophysical exploration, high-way and building construction, blast-hole drilling etc.
3.With hydraulic feeding device, and high drilling efficiency.
4.Close levers, convenient to operate, safe and reliable operations.
5.Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.
6Easily operation and durable to save labors and money for you.
Precautions for transportation of water well drilling rig
The center of gravity of the water well drilling rig shall be balanced according to the road conditions and the site. Random drilling is prohibited in the construction site. Signs shall be made for the backfilling of the pit and pool. The mast shall be lowered and the crawler shall be retracted in narrow roads or dangerous sections. The lifting angle and left-right inclination of the mast of the drilling rig shall be adjusted in inclined sections, and the center of gravity of the drilling rig shall be adjusted by turning on the truck; When there is water on the access road or construction site, the drill pipe bit can be used to guide the machine
