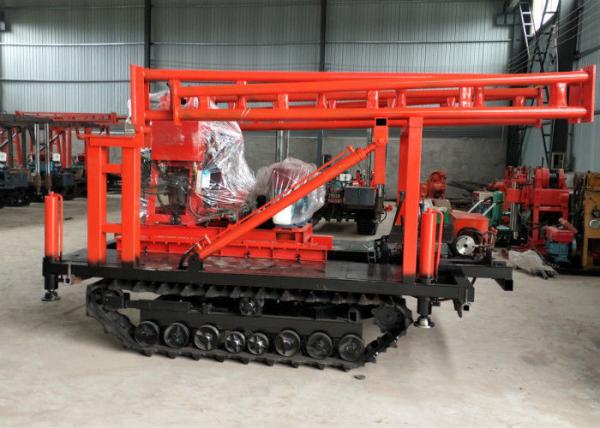

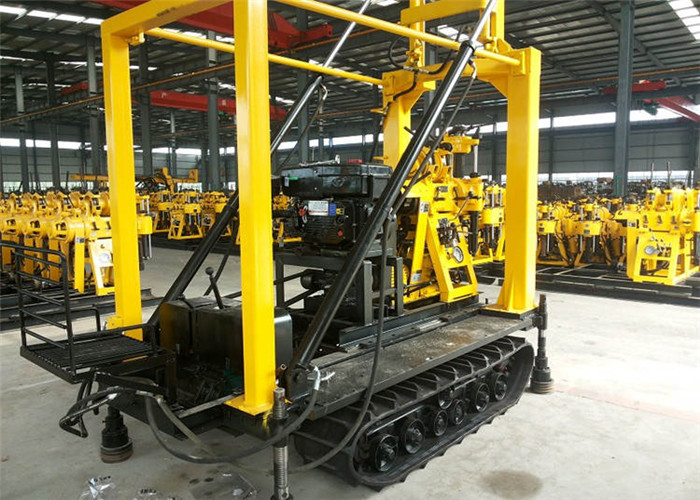

Hot Sell Big Motor Portable Deep Water Well Drilling Rig For Rock Exloration
Technical specification
| ST-200 Type |
| Drill | Swivel Head |
| Drilling depth | Max.200m | Spindle speed | (4-speed) 115 230 505 1010r/m |
| Hole diameter | Max.300m | Spindle stroke | 450kmm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump |
| Model | YBC-20/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.2Mpa |
| Flow speed | 20ml/r | | |
| Rated speed | 2000r/min | | |
| Hoist | Power(diesel) |
| Max. lifting capacity | 20KN | Model(diesel engine | ZS1115 |
| Hoisting drum revolution | 20.39.85.170r/m | Rated power | 16.2KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG |
| SIZE | 1730*860*1360mm |
Application of Water well drilling rig
1. General investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
2. With hydro-automatic feeding device, and high drilling efficiency.
3. Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
4. Close levers, convenient to operate, safe and reliable operations.Compact in structure.
5. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
6. Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.
WE OFFER YOU:
1. FACTORY DIRECT PRICE.
2. NICE QUALITY.
3. QUICK SHIPPING WITHIN 7 DAYS.
4. MOQ , 1 SET OK . SMALL ORDER WELCOME.
5. ONLINE PAYMENT.
6. SUPPORT 7 DAYS REFUND.
7. AFTER SALES SERVICES 24/7 ON LINE
