High Efficiency Water Well Drill Rig With 100 m Depth For The Well
Advantages
1. The four feet are hydraulic support legs. Each one is controlled alone which make the platform is fixed on the ground smoothly.
2. The maximum load of the platform is 4500kg and can load 100m drilling rig furthest. The size of the platform is reasonable.
3. The chassis adopts rubber track, which has the advantages of lighter weight, lower life-cycle costs, and less vehicle running gear noise, less vehicle vibration, less fuel consumption. It does not hurt the pavement in the city roads.
4. Save your cost, improve your drill efficiency
Technical Parameters:
| Parameter | Value |
| Mud Pump | Horizontal Reciprocating Single-acting Piston Pump |
| Drilling Diameter | 150mm |
| Rod Hole Diameter | 42mm, 50mm |
| Weight | 600kg |
| Flow Speed | 8ml/r |
| Oil Pump | YBC-12/125 |
| Spindle Speed | 1010,790,470,295,140(r/ Min) |
| Rotary Speed | 0-150rpm |
| Hoisting drum revolution | 121,76,36(r/min) |
| Power Source | Electricity, Diesel |
| Product Name | Water Well Drilling Rig Machine |
| Keywords | Borehole Drilling Rig, Water Borehole Rig, Water Borehole Rig Machine |
Feartures:
It is characterized by high rotation speed and it is applicable to core drilling with small-caliber diamond drill bit. Its hoist adopts a combination of friction cone and planetary gear, with advanced structure. It is suitable for percussive drilling.Hydraulic feeding, easy to operate and high drilling efficiency.
Its structure is compact, and the pump is mounted on the drill bottom frame, which occupies a smaller area.The rotary table adopts a T-shape groove angle changing range; therefore the drill rig is capable of drilling with various inclinations. No exposure of bevel gear for the case opening, which enables the accuracy and reliability of the falling-in of gears, free from any pollution and with a long service life.
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
What are the characteristics of trailer mounted well drilling rig?
1. The trailer well drilling rig can be towed and moved by tractors and other tractors, so it is convenient and fast to move and has good mobility;
2. The main components of the drilling rig, such as winch, rotary table, gearbox, tower and chassis, are independently produced by our factory, with stable and reliable performance;
3. When drilling, the water well drilling rig uses an independent diesel engine as the power to make the mechanical winch and rotary table work at the same time through mechanical transmission;
4. It has the advantages of simple operation, strong usability, convenient maintenance, less investment and quick effect. It is the best product for users.
5. It is equipped with four hydraulic jacks, which is safe and reliable and improves the universality.
The water well drilling rig is mainly used for agricultural irrigation, ventilation holes of underground tunnels, drilling of engineering buildings, and exploration and general survey of hydro-geological conditions of strata
Product Tags:
|
|

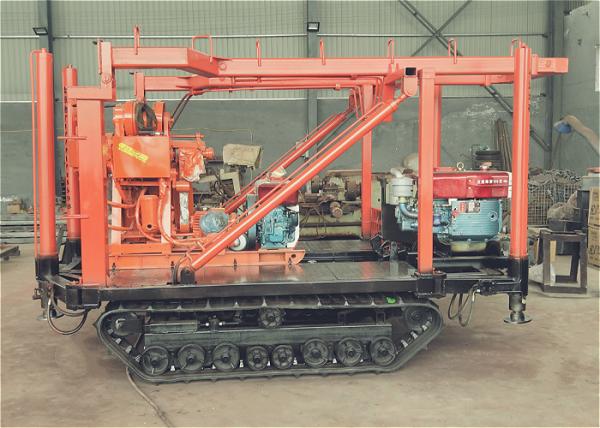

ISO 100M Four Feet Trailer Mounted Drilling Rigs Images
|
