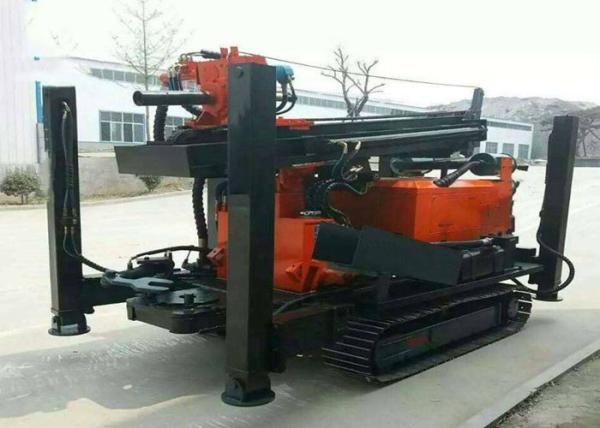

Name: Crawler Mounted Flexible 180m Pneumatic Borewell Machine
Brand: JINZHOU SHITAN
Price: 1 USD

Brand Name : JINZHOU SHITAN

Model Number : FY-180

Certification : CE ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-10 days

Packaging Details : Standard Export Package

Weight : 4.5 T

Diameter : 140-254mm

Depth : 180m

Dimension : 3800*1500*2200

Contact Now

180m Depth Crawler Mounted Water Well Geological Drilling Rig Flexible for Industry Drilling

Product Parameter:

Model	FY150	FY180	FY200	FY260	FY300	FY400	FY600	FY800
Total Weight (kg)	3000	3800	4600	6200	8800	8700	12000	13000
Dimension (mm)	34001450 2000	38001550 2350	38001600 2450	39001950 2550	43501850 2750	50502100 2800	54002100 2850	61002100 2900
Hole diameter (mm)	130-219	130-254	140-325	140-325	180-325	140-325	140-350	140-500
Hole depth (m)	150	180	200	260	300	400	600	800
Disposable drilling depth (mm)	3000	3000	3000	3000	6000	6000	6600	6600
Walking speed (km / h)	2	2.5	2.5	2.5	2	2.5	2.5	2.5
Climbing ability (Max.)	25	30	30	30	30	30	30	30
Distance off ground (mm)	250	250	250	250	230	250	250	250
Working pressure (Mpa)	1.45-2.5	1.7-2.5	1.7-3.0	1.7-3.0	1.7-3.3	1.7-3.0	1.7-3.5	1.7-3.5
Air consumption (m3 / min)	15-27	15-27	17-35	17-35	23	17-35	17-35	17-35
Matching power (kw)	37-55	42-65	65	85	85	95	115	140
Rotational speed (rpm)	38-55	48-70	50-70	40-70	55-115	45-75	45-110	55-115
Rotational torque (N.M)	4000-5000	4200-5600	5000-6500	7000-9000	7200-8500	8500-10000	8500-10050	8660-11150
