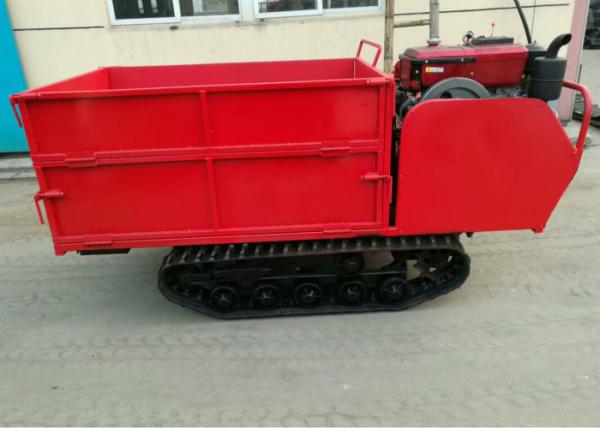

Simple Operation 3 Ton Tracked Dumper / Mountain Agricultural Crawler Transporter
Introduction of tracked transporter
1. winter transport vehicles can be free in muddy and frozen roads.
2. self unloading design, crawler walking, motor walking, greatly extending the ability to use.
3. the specific size can be customized according to the demand
4. it has strong carrying capacity, large climbing capacity, simple operation and easy maintenance.
| Crawler truck dumper Specifications |
| Loading weight | 3ton |
| Total Machine Weigh | 2500KG |
| Engine power | 45HP Diesel engines |
| Power | 33KW |
| Pump model | 308 |
| Diesel engine capacity | 25L |
| Hydraulic volume | 5L |
| Maximum deadweight | 3000KG |
| Maximum grade | 30 |
| Track length | 4900mm |
| Track height | 565mm |
| Crawler width | 400mm |
| Size of the trunk | 2000*1650*1850mm |
| Machine size | 3600*1650*1850mm |
| Walking speed | 0-20km/h |
main features
1, wide application, simple structure, smooth transmission, effortless operation and easy realization of automatic control.
2. It is suitable for complex roads such as swamps, banks, deserts, paddy fields, tropical rain forests, snow and ice.
3, single cylinder power system, low fuel consumption.
4, high traction capacity, good performance of climbing and land grabbing, strong transport capacity.
5, the turning radius is small, flexible and flexible, especially suitable for narrow sites, and reduce the cost of building roads.

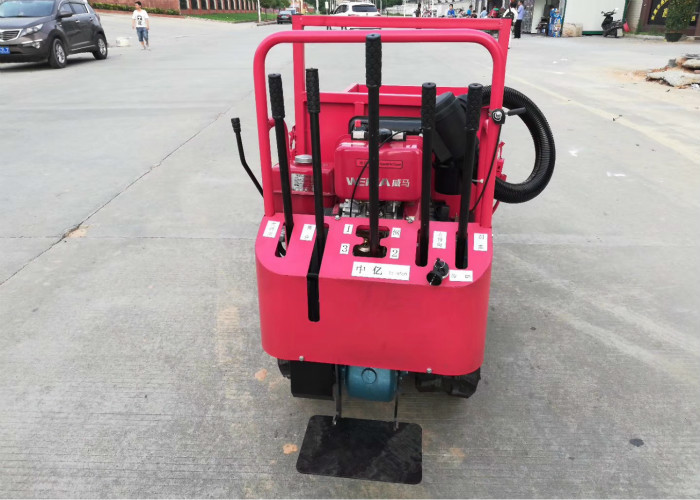

6. It is equipped with electric starting, centralized handle and convenient operation.
Application, Characteristics And Significance Of Agricultural Crawler Transporter
1. Transportation of rice after harvest
It can be transported in the muddy paddy field after harvest without sinking into the vehicle, which improves the transportation efficiency; there is no rutting, which avoids the production reduction of paddy field caused by the deep rutting, and saves the manpower and material resources required for leveling the ruts; the vehicle body is low, which is convenient for manual loading and unloading.
2. Transportation of sea cucumber in spring
To breed sea cucumbers, it is necessary to build a sea cucumber nest before releasing water into the culture pool. The sea cucumber nest is usually filled with stones like chess pieces. However, the bottom of the sea cucumber culture pond is more muddy than the newly harvested paddy field. At this time, the crawler agricultural transport vehicle can play its advantages better, and it does not sink into the vehicle or form ruts.
3. When the rain is too heavy, the harvest and transportation of vegetable field
When the rain is too heavy, it is difficult to transport many vegetables or cash crops after harvest. For example: sugar beet, radish, cabbage, etc., when the water logging year, crawler type agricultural transport vehicle can also transport vegetables, cash crops, etc. from the field with plenty of water.
