Triplex Reciprocating 200L/Min Cement Pressure Grouting Machine

Triplex Single Acting Reciprocating Drilling Rig Mud Pump

Product Introduction

Bw-200 / 10 mud pump can transport not only water and cement slurry, but also mortar with particle size less than 5mm

Application

It can be used for pressure grouting, rotary jet grouting, static pressure grouting, anchor grouting, tunnel support grouting, foundation reinforcement grouting for construction engineering, highway, railway foundation reinforcement grouting, as well as other water conservancy construction and construction industry construction Cement slurry, clay mortar, cement mortar and other solid-liquid mixed slurry can also be used as matching pump for percussive rotary drilling with geological core 1000m drilling rig.

Feature

1. The angle sealing structure technology is widely used in the main sealing parts of the pump, which has the advantages of reliable sealing, simple process and convenient assembly and disassembly.
2. The water inlet and drainage valve is inlaid with cemented carbide, and the valve adopts spring ball valve with high hardness, wear resistance, impact resistance, convenient installation and folding, and long service life.
3. The diameter of the large pulley on the left is enlarged, and the power change is convenient and easy.
4. The safety valve is diaphragm type.
5. Two plate clutch, small binding force, easy to operate and reliable.
6. A water seal ring is added to the plunger seal to make the seal reliable. As the dirt on the plunger can be washed and the plunger can be cooled in time, the plunger can be durable.
7. Both slurry and mortar can be transported.

Specifications

200L/Min Cement Grouting Machine

Cement Pressure Grouting Machine

ISO9001 Reciprocating Piston Pump

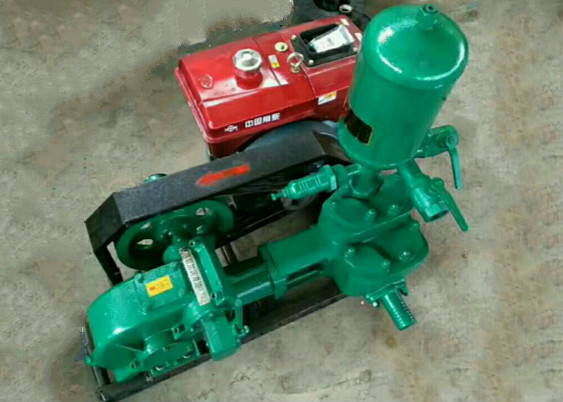

Triplex Reciprocating 200L/Min Cement Pressure Grouting Machine Images
