200m Borehole Water Well Drilling Rig Mud Pump
Drilling Rig Mud Pump Brief Introduction :
1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor
power, It has simple operation, convenient, can achieve close range or remote control.
2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy,
stable performance, good general and so on.
3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable
configuration parameters selection,The construction technology can satisfy different requirements.
4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy
geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.
Drilling Rig Mud Pump Parameters:
| Model NO: | BW160 | BW200 | BW250 |
| Type | horizontal single | horizontal type two | horizontal triplex |
| cylinder double action | cylinder double action | reciprocating single |
| reciprocating piston pum | pump | acting piston pump |
| cylinder daimeter | 95mm | 80,65mm | 80,65,70mm |
| piston stroke | 85mm | 85mm | |
| frequency of stroke | 165 times/min | 145 times/min | 200 times/min |
| flow rate | 160 l/min | 200;125 l/min | 250,166,200 l/min |
| pressure | 1.3mpa | 4,6mpa | 2.5,4,5,6,7mpa |
| power input | 5.88kw | 14.7kw/20hp | 22kw |
| diameter of suction pipe | 50mm | 65mm | 76mm |
| diameter of discharge pipe | 40mm | 37mm | 51mm |
| overall dimensions(L*W*H) | 1110*725*965mm | 1050*630*820mm | 1100*995*650mm |
| weight | 200kg | 300kg | 760kg |
Features of Drilling Rig Mud Pump:
1. The pump adopts a large channel system, which can effectively prevent the blockage of large particles of sand and gravel.
2. The machine is equipped with rubber tugboat, which can be moved and fixed, which is convenient for engineering construction.
3. The machine adopts the structure of adjustable pressure limiting unloading valve, and the pressure can be set arbitrarily in the range of 0.5-5.0mpa to meet the needs of various construction. When the grouting pressure exceeds the set value, the unloading valve will open automatically and the slurry will return to the slurry storage tank. It will not affect the project quality due to overpressure and effectively protect the equipment and pipelines.
4. The machine adopts double inlet suction, the main suction inlet is the cement mortar inlet for engineering, and the secondary suction inlet is clean water inlet. When the mortar pump needs to stop for a long time, the water valve can be opened to clean the flow channel system of the pump at any time, so that the mortar pump will not be blocked by the deposition of cement mortar. This structure is also suitable for some double liquid grouting projects, which is really a multi-purpose machine.
5. The plunger of the machine adopts multi-stage sealing assembly, and the ball valve adopts high hardness steel ball valve, which greatly prolongs the service life of the main vulnerable parts.
6. The machine has high suction performance and large particle diameter sand passing capacity, so that large particles (≤ 6 mm) can be transported smoothly (when the total content is less than 5%).
Application of Drilling Rig Mud Pump
1. The dam body of earth dam and earth rock dam in the river channel of reservoir, the cracks and loose layer of dam foundation, and the grouting of cement mortar for karst cave and fault water blocking.
2. The grouting of mortar and anchor rod in bolt shotcreting support engineering.
3. Grouting of cement mortar in tunnel engineering.
4. Grouting of cement mortar for diaphragm wall.
5. The mortar pouring at the junction of highway and bridge.
6. High level or long-distance transportation of other high viscosity solid-liquid mixtures.
Product Tags:
|
|

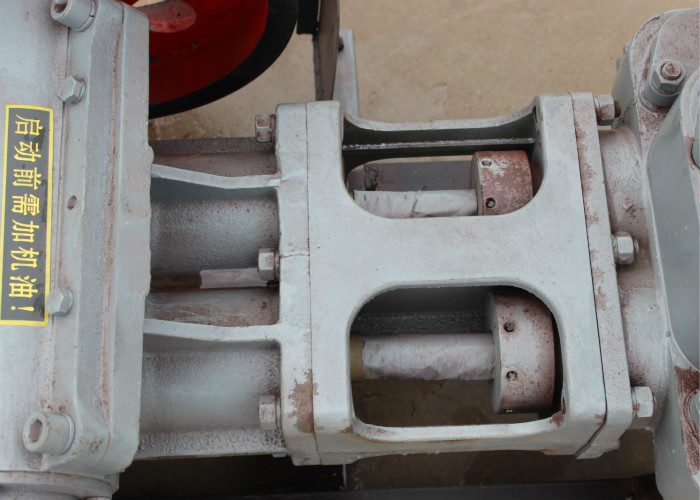

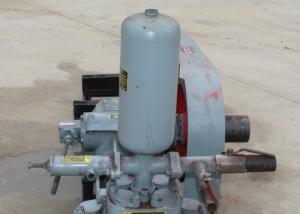

Engineering 22kw 200m Water Well Drilling Rig Mud Pump Images
|
