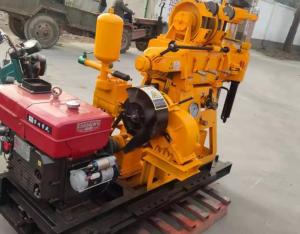

Directional 42mm 100m Mining Crawler Mounted Drill Rig

1, With hydraulic feeding device, high drilling efficiency.

2, The rotary torque large hole diameter.

3, Equipped with ball card clamping mechanism, which can realize non inverted pole, high efficiency.

4, The rig has the advantages of compact structure, small volume, light weight, strong decomposition, easy to handle.

XY-1 type drilling rig is a kind of portable drilling rig hydraulic feeding.

1.1 Rig:

1.1.1 The rig is suitable for survey and prospecting, geophysical exploration, roads and buildings and other exploration and play blasthole drilling projects.

1.1.2 drilling can be chosen according to different strata of the alloy, steel grit and steel shot and other drills.

1.1.3. Drillable 2-9 grade sandy clay and bedrock like.

1.1.4 rated drilling depth 100m, the deepest must not exceed 120m. Nominal hole diameter of 110mm, the maximum opening straight

Diameter allowed to be 130mm, the final hole diameter of 75mm, drilling depth according to ground conditions.

1.2 rig Features

1.2.1 has a hydraulic automatic feed mechanism, improve drilling efficiency, reduce manual labor workers.

1.2.2. Card holder mechanism instead of using the ball chuck, can implement non-stop down the lever, easy to operate, safe and reliable.

1.2.3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.

1.2.4 The handle centralized, easy to operate.

1.2.5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.
