16T 200m Crawler Mounted Drill Rig With Air Compressor

Name: 16T 200m Crawler Mounted Drill Rig With Air Compressor
Brand: Shitan
Price: 1 USD

China 16T 200m Crawler Mounted Drill Rig With Air Compressor wholesale

Brand Name : Shitan

Model Number : 30-500

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 5-8 work days

Packaging Details : Plastic film and Standard export wooden box

Product name : Soil Testing Drilling Rig Machine

Geological : soil, rock, hard rock,

Drilling depth : 30-500

Type : portable type

Usage : Soil sample

Power type : Diesel

After-sales service provided : Engineers available to service machinery overseas

Name : Crawler hydraulic DTH drilling rig,water well drilling rig

Power : Deseil

Drilling diameter : 75-325mm

Contact Now

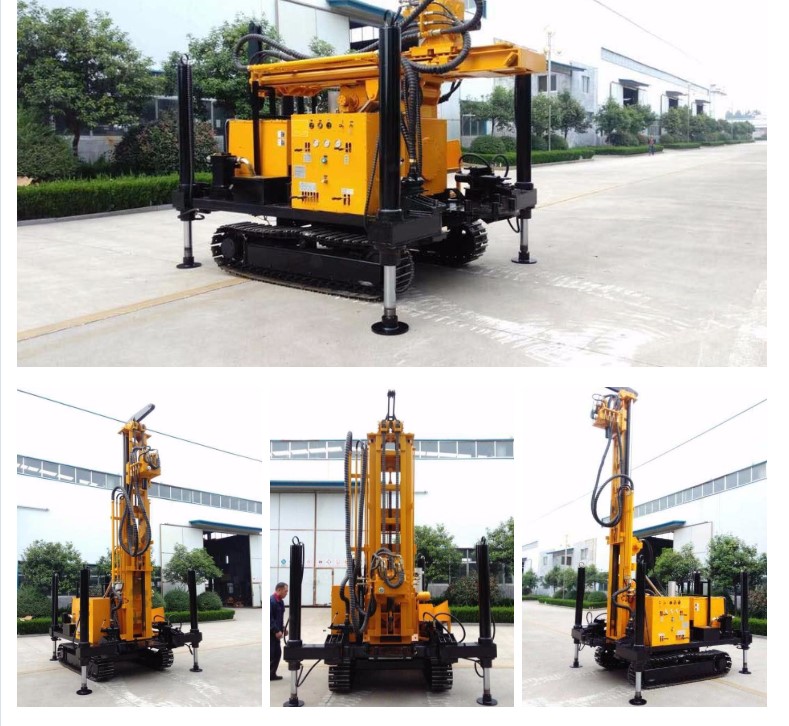

200m depth crawler track water well drilling rig with air compressor

Introduction to drilling rig

The main purpose and characteristics

It is an efficient and versatile drilling equipment. It is mainly usd for drilling wells, agricultural irrigation wells, ground source heat pump wells and other wellbores. It is especially suitable for water intake projects in mountainous and rock formations.

Drilling rig parameters

Technical parameter
Drilling depth		200m
Hole(Drill bit) diameter (mm)		Φ115-350
Adaptable formations		Loose soil and bedrock (Hardness f=6~20)
Drilling method		Top drive rotation, hydraulic feeding, work with mud pump or DTH hammer
Rotary speed (rpm)		60～160
Torque (N.m)		5000～6500
Feeding force (Ton)		8
Lifting force (Ton)		16
Tool winch lifting force (Ton)		1.5
Drill pipe dia.		Φ76/Φ89
Drill pipe length		3000
Air pressure (Mpa)		1.05-2.46
Air consumption (m3/min)		16-35
Diesel engine		YN33GBZ
Engine parameter		65kW/2400rpm
Walking speed		0～2.5
Climbing capacity		20
Distance from ground		250
Dimension (mm)		4000x1900x2600
Unity weight (kg)		6000

Rig features

1. New hydraulic technology, large torque hydraulic motor rotation and the propulsion of the large-diameter hydraulic cylinder.

2. Power for the hydraulic system from the famous engine, the two-stage air filter and the intake air leading the compressed air to prolong the service life of the diesel engine.

3. Unique pump design, easy to maintenance, reduce maintenance costs. 4. Centralized control of the hydraulic console for easy operation.

4. This series of rigs using excavator crawler chassis, off-road performance.

5. Two-stage rotation and propulsion speed to meet the needs of different wear and tear in the soil and rock formations.

6. Combined locator, according to different types of drill pipe and impactor to adjust the replacement of the positioning plate to ensure accurate and reliable positioning centering.

7. Hoisting mechanism to facilitate the lifting of the drill pipe and the impactor, reducing labor intensity.

Advantages of crawler type water well drilling rig

1. The drilling rig adopts an automatic telescopic drilling tower, which is supported by two oil cylinders and a group of hydraulic valves to control the drill tower to lie on its back, which saves time and effort in operation and creates benefits for users to a large extent.
2. The chassis adopts rubber track, which is light in weight and low in life cycle cost. It can reduce the noise of vehicle walking mechanism, reduce the vibration of vehicle body, greatly reduce the fuel consumption, and can walk on the urban road without damaging the road surface.
3. The chassis is equipped with four threaded outriggers (or hydraulic high outriggers) for quick and convenient installation and adjustment. It can be used for leveling the working plane. The loading and unloading vehicle can reduce the hoisting cost and efficiency, and can be used as auxiliary support during working.
4. The use of 48V electric starting diesel engine can greatly reduce the labor intensity of the operator. In cold season, when the diesel engine is difficult to start, it shows the advantages of the drilling rig.
5. This machine is equipped with bw-160 mud pump, which has large pump flow and pressure, convenient maintenance and spare parts
