200m Depth Geological Prospecting Water Well Drilling Equipment Machine XY-1B Type

Name: 200m Depth Geological Prospecting Water Well Drilling Equipment Machine XY1B Type
Brand: JINZHOU SHITAN
Price: 1 USD

Brand Name : JINZHOU SHITAN

Model Number : XY-1B

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-12 days

Packaging Details : Standard Export Package

Product Name : Soil Testing Drilling Rig Machine

Weight : 600 KG

Geological : Soil, Rock, Hard Rock

Drilling Depth : 50-200 Meter

Type : Portable Type

Application : Different Field Drilling

Contact Now

XY-1B Drilling rig

XY-1B Drilling rig with hydraulic feeding is widely utilized and featured in high power and hoisting load(2T),Large torque transmission,etc.The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min.It is suited for the geotectonic survey,geological core drilling,small hole drillings for grout,blast and water well in railway,water conservancy,bridge,dam foundation and other construction.Diamond drill vit,alloy drill bit and steel roller drill bit are available for drilling according to different geological structures.

With hydraulic automatic feeding device,elevated drilling efficiency.
Large torque and drilling diameter.
With a spherical jaw holding mechanism and the rod replacement without breakdown,high efficiency.
Compact structure,small volume,lightweight,high detachability,easy transportation and suitable for the operations in plains or mountain areas.

Technical Specifications:

Drilling depth	200m, 150m, 100m, 70m, 50m, 30m
Hole diameter for different depth	75mm,91mm,110mm,130mm,150mm,300mm
Drill rod diameter	42mm
Angle range	90°-75°
Dimensions(LWH)	1710mm860mm1360mm
Weight(without power unit)	525KGS
Rig traveling device	XY-1B-150
Migration distance	350mm
Distance from a drilling hole	300mm
Swivel Head
Spindle speed(4-speed)	71,142,310,620r/min
Spindle stroke	450mm
Upward displacement speed of idling vertical spindle	0.05m/s
Downward displacement speed of idling vertical spindle	0.067m/s
Spindle pull-down max	15KN
Spindle lifting capacity max	25KN
Spindle Max Torque	1.5KN.m
Brake dia	278mm
Brake belt width	50mm
Hoist
Max.lifting capacity(single rope)	20KN
Hoisting drum linear velocity(two levels)	0.172,0.345,0.738,1.476m/s
Hoisting drum revolution	20,39,85,170r/m
Drum dia	140mm
Wire rope dia	9.3mm
Wire rope capability	40mm
Oil pump
Model	YBC-20/125
Rated pressure	12.5Mpa
Displacement	20ml/r
Rated speed	800-2500r/min
XY-1B-150 water pump
Model	Hydraulic reciprocating single-acting piston pump
Displacement max.	95(77)L/min
Working pressure max.	1.2Mpa
Rated pressure	0.7Mpa
Liner diameter	80mm
Piston stroke	100mm
Power(diesel engine or motor)
Model(Diesel engine)	1115
Rated power	16.2KW
Rated speed	2200r/m

200m Depth Geological Prospecting Water Well Drilling Equipment Machine XY-1B Type

Product Tags:

soil sample testing equipment

soil testing drilling rig

China 200m Depth Geological Prospecting Water Well Drilling Equipment Machine XY-1B Type wholesale

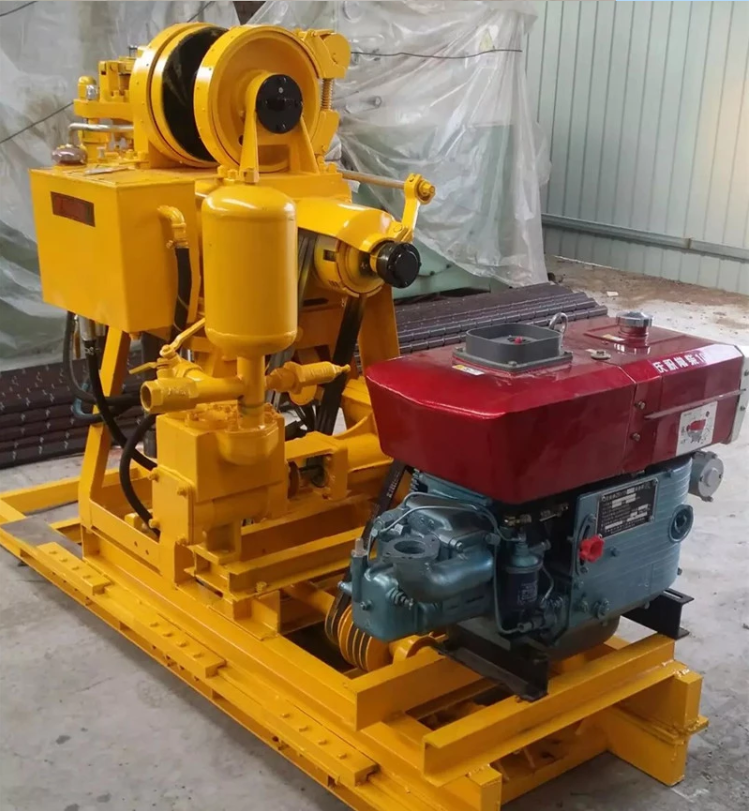

200m Depth Geological Prospecting Water Well Drilling Equipment Machine XY-1B Type Images
