GK200 Hydraulic 200m Portable Machine Diesel Power Water Well Drilling Rigs
water well drilling rig for Sale 200m Introduction Borehole Drilling Machine

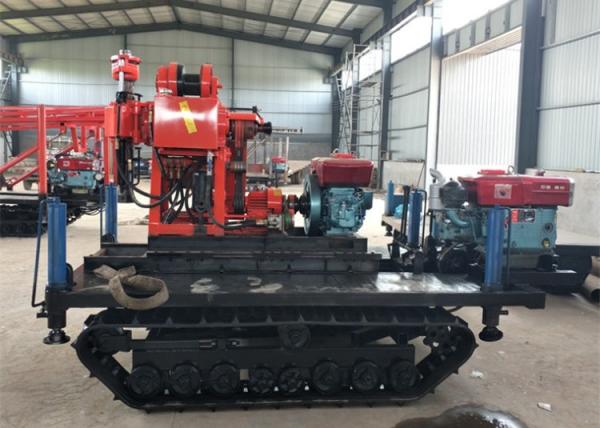

GK 200 portable water well drilling rig equipped with BW-160 mud pump and 22HP diesel engine, Max. drilling depth can be 200m with the opening diameter of 75-400mm, trailer, crawler, and tractor chassis for choice.
Borehole Drilling Machine /water well drilling rig for Sale 200m Parameter
| Drilling depth | 200m |
| Maximum borehole caliber | 300mm |
| Minimum borehole caliber | 75mm |
| Diameter of Drill pipe | 42/50/60mm |
| Drilling angle | 90°~75° |
| Weight(Not include power) | 1150kg |
| Unity machine dimension | 2750*950*1770mm |
| 2.Vertical Spindle |
| Spindle rotating speed | 64/128/287/557r/min |
| Spindle stroke | 450mm |
| 3.Hoist |
| Max. single line lifting capacity | 2400kg |
| Reel lifting speed | 1.64m/s |
| Steel wire rope diameter | 13mm |
| Steel wire rope capacity | 35m |
| Hug floodgate diameter | 245mm |
| Hug floodgate belt width | 70mm |
| Movable distance | 400mm |
| 4. Mud pump | |
| Type | BW-160 |
| Type | Horizontal Single Cylinder with double function |
| Max. Discharge | Diesel engine 170L/min |
| Electrical Motor 140L/min |
| Max. Pressure | 3MPa |
| Work Pressure | 1.5MPa |
| 5. Power |
| Diesel engine | 22HP |
| Electric Motor | 15KW |
| 6. Drilling tower |
| Type | Integrated on drilling rig |
| Control system | Hydraulic |
| 7. Trailer chassis |
| Type | 4 wheels |
Characteristics of drilling rig
a. the machine is equipped with crawler chassis device, easy to move with fast speed.
b. hydraulic oil pressure feed device, improve drilling efficiency.
c. pressure gauge display the condition of the bottom of the drill hole.
d. drill mast controlled by hydraulic cylinder, improve the efficiency diesel engine adopt the electric starter, to reduce the labor intensity.
Where are the underground water sources?
Many novices will ask where the groundwater is when they use the drilling rig?
To answer this question with basic common sense, there is a layer of stone on the earth's surface, which is bedrock. There are cracks in the bedrock, and water is in the cracks.
The area lower than the mountain is covered by clay, sand and pebbles, which is a loose layer. The clay particle size is small, there is no space between the particles, and there is no water. The size of sand and pebbles is large, and the space between the particles is also large, and there is water.
The depth is from 0 meters to 1000 meters, which may be thicker. In combination with local geographical conditions, it is easy to find a suitable location for drilling. After reaching a certain depth and stratum, there will be water.
