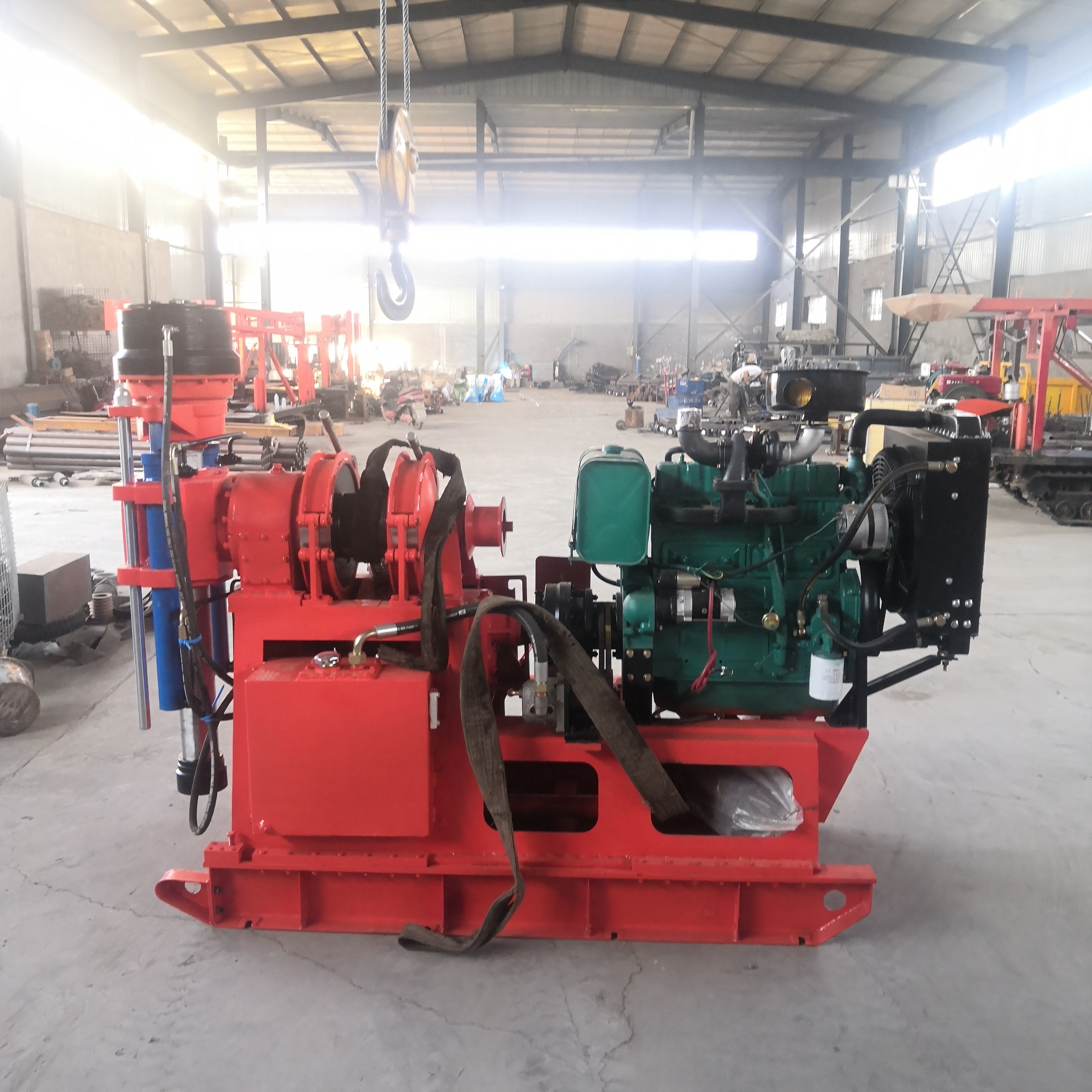

Geological Exploration Core Drill Rig , Portable Water Well Drilling Rigs XY-2B
Brief Introduction
XY-2B is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.
Advantages as below
It is not only suitable for large and small diameter drilling, but also for engineering geological survey, hydrology, water well and large-diameter engineering construction drilling. It has the characteristics of small volume, light weight, large installed power, wide range of performance and strong versatility, and its product quality is excellent and after-sales service is considerate. It is widely welcomed by geological exploration, hydropower engineering, highway and railway construction, construction engineering construction and other departments. The drill can be equipped with electric motor or diesel power
Key words: Industrial Special Equipment, Mining Machinery, Other ,Mining Machinery
| Hydraulic feeding mechanism can improve drilling efficient,reducing labor work |
| ★ The rig equipped with a ball on a cassette holding mechanism and a six driving drill pipe.double guide,the drilling rod can be replaced without shutdown ------------high efficient,convenient operation,safe and reliable |
| Equipped with hole bottom pressure indicator, you can know the situation inside the hole |
| ★ Handle centered ,convenient operation |
| ★ The drilling machine has the advantage of compact structure,small volume, light weight,convenient move, suit for mountain and plain areas. |
| ★ Adopting large drive pipe,double guide rod, increase the steady |
| Diesel engine or Electrical motor. |
2 Technical specification
| XY-2 BType |
| Drill | Swivel Head |
| Drilling depth | Max.100~530m | Spindle speed | 57 99 157 217 270 470 742 1024 r/min |
| Hole diameter | Max.600m | Spindle stroke | 560mm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.50KN |
| Angle range | 0°~90° | Spindle lifting capacity | Max. 60KN |
| Oil pump | Water pump |
| Model | YBC-20/125 | Model | Gear oil pump |
| Rated pressure | 8Mpa | Working pressure | Max. 10Mpa |
| Flow speed | 20ml/r | | |
| Rated speed | 150r/min | | |
| Hoist | Power(diesel) |
| Max. lifting capacity | 212kgs | Model(diesel engine | 395K2 |
| Hoisting drum revolution | 20.39.85.170r/m | Rated power | 19.85KW |
| Drum diameter | 140mm | Rated speed | 2200 r/min |
| WEIGHT | AROUND 1200kgs |
| SIZE | 2220x900x1880mm |
Product Tags:
|
|

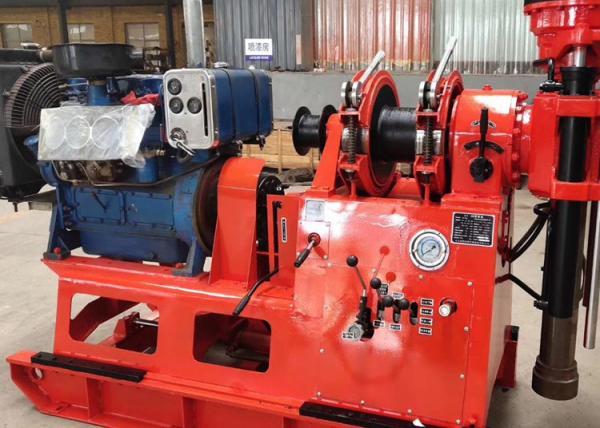

Geological 60KN 100m Portable Water Well Drilling Rigs Images
|
